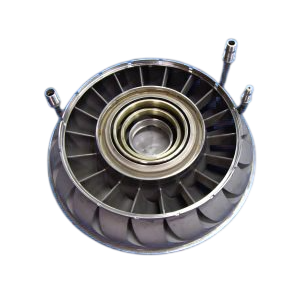

3rd Stage Nozzle

3rd Stage Nozzle

The 3rd Stage Nozzle is an essential stationary component in gas turbine engines, positioned between rotor stages in the turbine section. Its primary function is to guide and accelerate high-temperature combustion gases toward the third-stage turbine blades, ensuring efficient energy transfer and stable engine operation.

As the gas flow progresses through multiple turbine stages, the 3rd Stage Nozzle plays a key role in maintaining proper velocity, pressure distribution, and flow direction, directly influencing turbine efficiency and power output.

Precision Gas Flow Control

The aerodynamic profile of the nozzle is designed to convert pressure energy into controlled velocity and direct the gas stream at the optimal angle toward the turbine rotor. This ensures maximum energy extraction with minimal losses.

Key benefits include:

• Improved turbine efficiency

• Enhanced power generation performance

• Reduced aerodynamic losses

• Stable airflow distribution

• Optimized engine operation

Engineered for High-Temperature Conditions

Although the 3rd stage operates at slightly lower temperatures than upstream stages, it still experiences significant thermal and mechanical stress. The nozzle is typically manufactured from advanced nickel-based superalloys that provide excellent resistance to:

• High-temperature oxidation

• Thermal fatigue

• Corrosion

• Creep deformation

• Mechanical stress

In some applications, thermal barrier coatings (TBC) are applied to further enhance heat resistance and extend service life.
