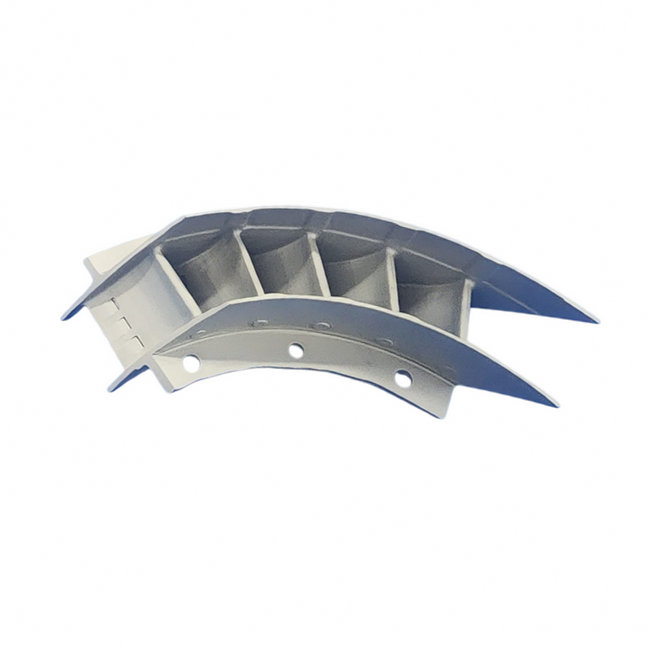

1st Stage Nozzle Segment

1st Stage Nozzle Segment

The 1st Stage Nozzle Segment is a critical component located between the combustion chamber and the first-stage turbine rotor in gas turbine engines. Its primary function is to direct and accelerate high-temperature combustion gases onto the turbine blades at the optimal angle and velocity, maximizing energy extraction and overall engine efficiency.

As one of the most heavily loaded hot-section components, the first-stage nozzle segment plays a vital role in determining turbine performance, fuel efficiency, and operational reliability.

Precision Airflow Management

The nozzle segment is carefully engineered to convert thermal energy into kinetic energy by accelerating combustion gases before they enter the turbine rotor. Its aerodynamic vane profile ensures precise gas flow control, reducing turbulence and improving turbine efficiency.

Accurate airflow guidance contributes to:

• Higher power output

• Improved fuel efficiency

• Reduced thermal stress on turbine blades

• Enhanced engine performance

Designed for Extreme Operating Conditions

First-stage nozzle segments operate under some of the highest temperatures within a gas turbine engine. To withstand these severe conditions, they are typically manufactured from advanced nickel-based superalloys with superior creep resistance, oxidation resistance, and thermal fatigue strength.

Many designs also incorporate:

• Internal cooling passages

• Film cooling technology

• Thermal barrier coatings (TBC)

• Precision-cast airfoil structures

These features significantly extend component service life while maintaining structural integrity.

Applications

The 1st Stage Nozzle Segment is widely used in:

• Industrial Gas Turbines

• Aero-Derivative Gas Turbines

• Aircraft Engines

• Power Generation Systems

• Marine Turbine Engines

• Oil & Gas Compression Equipment

Key Benefits

• Excellent High-Temperature Resistance

• Superior Oxidation and Corrosion Protection

• Optimized Gas Flow Performance

• Enhanced Turbine Efficiency

• Extended Component Life

• Reduced Maintenance Costs

• Reliable Long-Term Operation

Dawopu Precision Turbine Component Solutions

Dawopu specializes in manufacturing high-precision turbine components for aerospace, power generation, and industrial gas turbine applications. Our capabilities include investment casting, 5-axis CNC machining, EDM processing, coordinate measurement inspection, and advanced surface treatment technologies.

We supply turbine nozzles, nozzle segments, turbine blades, shrouds, combustor components, and custom-engineered aerospace parts to customers worldwide.

Whether for OEM production, aftermarket replacement, or MRO support, Dawopu delivers reliable, high-quality turbine solutions with competitive lead times and global delivery capability.
