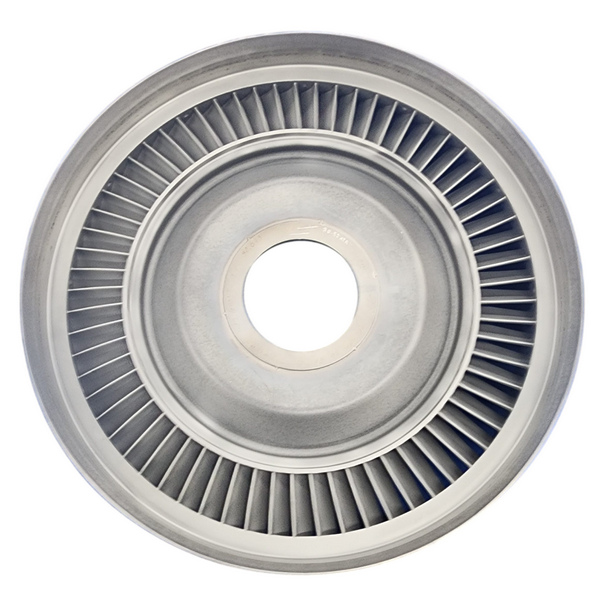

1st Stage PT Nozzle

1st Stage PT Nozzle

The 1st Stage PT Nozzle (Power Turbine Nozzle) is a critical hot-section component used in gas turbine engines. Located at the entrance of the power turbine section, it directs and accelerates high-energy exhaust gases onto the first-stage power turbine blades, enabling efficient conversion of thermal energy into mechanical power.

The performance of the power turbine nozzle directly influences turbine efficiency, power output, fuel consumption, and overall engine reliability.

Optimized Gas Flow Performance

The primary function of the 1st Stage PT Nozzle is to control the direction, pressure, and velocity of exhaust gases before they enter the power turbine rotor. Precision aerodynamic vane profiles ensure that gases strike the turbine blades at the optimal angle, maximizing energy extraction while minimizing aerodynamic losses.

Benefits include:

• Increased turbine efficiency

• Improved power output

• Reduced fuel consumption

• Enhanced operational stability

• Lower thermal stress on rotating components

Advanced Materials for Extreme Environments

Power turbine nozzles operate under high-temperature and high-pressure conditions. To withstand these demanding environments, the 1st Stage PT Nozzle is typically manufactured from advanced nickel-based superalloys with excellent resistance to:

• Thermal fatigue

• Oxidation

• Corrosion

• Creep deformation

• High-temperature stress

Many nozzle designs also incorporate internal cooling passages and thermal barrier coatings (TBC) to further improve durability and service life.

Applications

The 1st Stage PT Nozzle is widely used in:

• Industrial Gas Turbines

• Aero-Derivative Turbine Engines

• Power Generation Facilities

• Oil & Gas Compression Systems

• Marine Propulsion Turbines

• Mechanical Drive Turbine Applications

Key Features

• High-Temperature Superalloy Construction

• Precision Airflow Control

• Excellent Oxidation Resistance

• Long Service Life

• Superior Structural Integrity

• Enhanced Turbine Efficiency

• OEM and Aftermarket Compatibility

Dawopu Precision Turbine Component Solutions

Dawopu manufactures and supplies high-performance turbine components for aerospace, energy, and industrial applications. Our production capabilities include precision investment casting, CNC machining, EDM processing, coordinate measuring inspection, and advanced coating technologies.

We provide:

• Power Turbine Nozzles

• Gas Producer Nozzles

• Turbine Blades

• Nozzle Segments

• Combustor Components

• Aerospace Machined Parts

With strict quality control and global supply capabilities, Dawopu delivers reliable turbine solutions for OEM, MRO, and aftermarket customers worldwide.

Product Specifications
