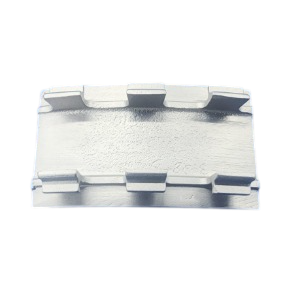

1st Stage Shroud Segments

1st Stage Shroud Segments

The 1st Stage Shroud Segments are critical components located around the first-stage turbine blades within a gas turbine engine. Their primary function is to form a close clearance seal between the rotating turbine blades and the stationary turbine casing, minimizing gas leakage and maximizing engine efficiency.

As part of the turbine hot section, these shroud segments operate under extremely high temperatures and pressures, making material quality and manufacturing precision essential for reliable long-term performance.

Improve Turbine Efficiency Through Effective Sealing

Gas leakage around turbine blade tips can significantly reduce turbine efficiency and power output. The 1st Stage Shroud Segments are engineered to maintain precise tip clearances, helping direct more energy through the turbine blades rather than allowing it to bypass the rotor.

Benefits include:

• Increased turbine efficiency

• Improved fuel economy

• Enhanced power generation performance

• Reduced energy losses

• Better overall engine reliability

Engineered for Extreme Operating Environments

The first-stage turbine area experiences some of the highest temperatures inside a gas turbine engine. To withstand these severe conditions, shroud segments are typically manufactured from advanced nickel-based superalloys with excellent resistance to:

• High-temperature oxidation

• Thermal fatigue

• Corrosion

• Creep deformation

• Mechanical wear

Many designs also feature thermal barrier coatings (TBC) and abradable sealing surfaces to further improve sealing effectiveness and durability.
