2nd Stage PT Nozzle

2nd Stage PT Nozzle

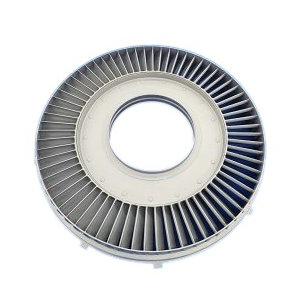

The 2nd Stage PT Nozzle (Power Turbine Nozzle) is a critical stationary component located within the power turbine section of a gas turbine engine. Positioned upstream of the second-stage power turbine blades, it directs and accelerates exhaust gases to ensure efficient energy extraction and smooth turbine operation.

As part of the power turbine assembly, the nozzle plays an essential role in converting gas pressure into controlled velocity while guiding airflow at the optimal angle toward the turbine rotor. This process helps maximize power output, improve fuel efficiency, and enhance overall engine reliability.

Optimized Airflow and Energy Conversion

The aerodynamic profile of the 2nd Stage PT Nozzle is engineered to minimize turbulence and pressure losses while delivering uniform gas flow to the turbine blades. Accurate airflow management contributes to improved turbine performance and reduced operating costs.

Key benefits include:

• Enhanced power turbine efficiency

• Increased energy recovery

• Improved fuel economy

• Reduced aerodynamic losses

• Stable operational performance

Designed for Demanding Turbine Environments

Although temperatures in the second-stage power turbine are lower than those experienced in the first stage, the component is still exposed to significant thermal and mechanical stresses. To ensure long-term durability, the nozzle is manufactured from advanced nickel-based superalloys offering excellent resistance to:

• High-temperature oxidation

• Corrosion

• Thermal fatigue

• Creep deformation

• Mechanical wear

Additional protective technologies such as thermal barrier coatings (TBC) and advanced cooling designs may also be incorporated depending on application requirements.
