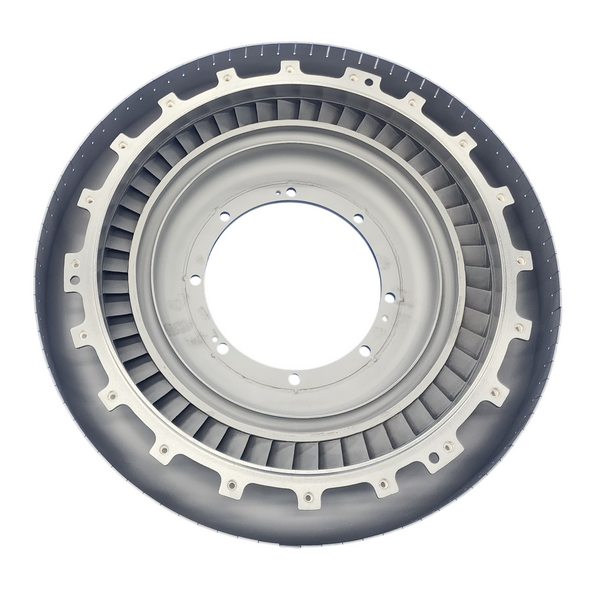

1st Stage GP Nozzle

1st Stage GP Nozzle

The 1st Stage GP Nozzle is a critical hot-section component used in industrial gas turbines and aero-derivative turbine engines. Positioned directly downstream of the combustion chamber, the first-stage nozzle directs and accelerates high-temperature combustion gases toward the turbine blades, maximizing energy extraction and overall engine efficiency.

Critical Role in Turbine Performance

As one of the most important components within the gas path system, the first-stage nozzle converts thermal energy into high-velocity gas flow. Precise nozzle geometry ensures that combustion gases enter the turbine rotor at the correct angle and velocity, improving power output, fuel efficiency, and operational reliability.

Designed for Extreme Operating Conditions

The 1st Stage GP Nozzle operates in one of the harshest environments within a turbine engine, where temperatures can exceed 1,200°C. To withstand these conditions, the nozzle is typically manufactured from advanced nickel-based superalloys and may incorporate internal cooling passages and thermal barrier coatings to enhance durability and thermal resistance.

Precision Engineering for Maximum Efficiency

Each nozzle segment is manufactured to tight dimensional tolerances to ensure optimal aerodynamic performance. Precision casting, CNC machining, and advanced inspection techniques help guarantee consistent quality, improved airflow control, and extended component life.

Applications

The 1st Stage GP Nozzle is widely used in:

• Industrial Gas Turbines

• Power Generation Turbines

• Aero-Derivative Gas Turbines

• Oil & Gas Compression Turbines

• Marine Gas Turbine Systems

• Energy and Utility Power Plants
