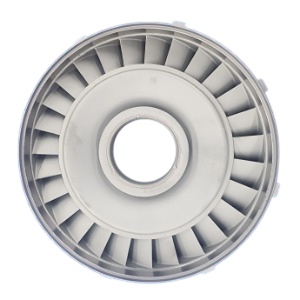

2nd Stage Nozzle

2nd Stage Nozzle

The 2nd Stage Nozzle is a critical stationary component located within the turbine section of a gas turbine engine. Positioned between turbine rotor stages, it directs and accelerates high-energy gases onto the second-stage turbine blades, ensuring efficient energy conversion and smooth engine operation.

Designed to optimize airflow and pressure distribution, the 2nd Stage Nozzle contributes significantly to overall turbine efficiency, power output, and fuel economy. Its aerodynamic profile ensures that combustion gases enter the turbine rotor at the correct angle and velocity, maximizing performance while minimizing losses.

Precision Airflow Control

The primary function of the 2nd Stage Nozzle is to convert gas pressure into controlled velocity and guide the gas stream toward the turbine blades. Accurate airflow management helps improve turbine efficiency and reduces aerodynamic turbulence.

Key benefits include:

• Enhanced turbine efficiency

• Improved power generation performance

• Reduced fuel consumption

• Lower aerodynamic losses

• Increased operational stability

Built for Extreme Turbine Environments

Although downstream from the first-stage components, the 2nd Stage Nozzle continues to operate under high-temperature and high-pressure conditions. To withstand these demanding environments, it is typically manufactured from advanced nickel-based superalloys that provide excellent resistance to:

• Oxidation

• Corrosion

• Thermal fatigue

• High-temperature creep

• Mechanical stress

Optional thermal barrier coatings (TBC) and internal cooling technologies further enhance durability and service life.
