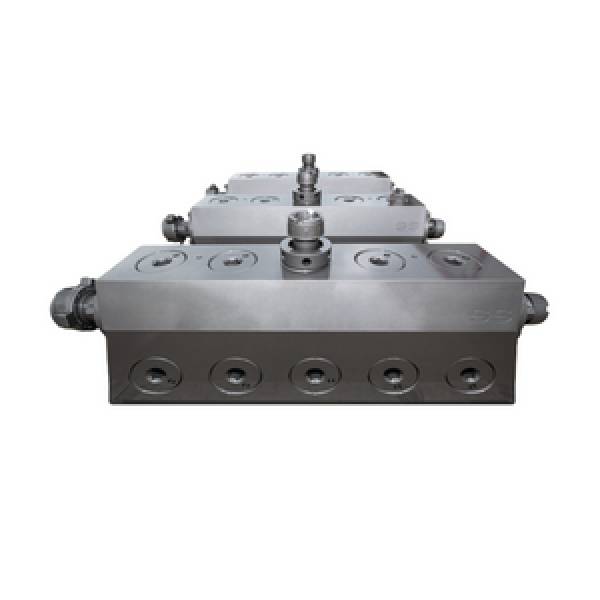

H1 – FLUID ENDS
Fluid Ends are precision-engineered pressure-containing components designed for fluid handling applications in compatible industrial pumping systems. Manufactured according to application-specific drawings, material requirements, and operating conditions, they are available for replacement and maintenance projects, subject to technical verification of the original equipment specifications.
| Application | - Industrial Fluid Handling Systems - High-Pressure Reciprocating Pumps - Oil and Gas Equipment - Drilling and Pumping Operations - Industrial Pump Maintenance and Overhaul - Replacement of Pressure-Containing Pump Components - Custom Industrial Pump Spare Parts |
|---|
Compatible Models
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Fluid Ends |
| Product Category | Industrial Pump Components |
| Component Type | Pressure-Containing Pump Component |
| Material | As per approved engineering drawings |
| Manufacturing Process | Forging, machining, or other specified processes |
| Dimensions | According to original equipment specifications |
| Operating Pressure | As specified for the intended pump application |
| Operating Temperature | According to the approved design |
| Fluid Compatibility | Subject to fluid composition and material verification |
| Heat Treatment | As required by the material specification |
| Inspection | According to applicable drawings, standards, and agreed requirements |
| Equipment Compatibility | To be confirmed by pump model and part number |
| Supply Type | Replacement parts and custom manufacturing, subject to technical review |
| Application | - Industrial Fluid Handling Systems - High-Pressure Reciprocating Pumps - Oil and Gas Equipment - Drilling and Pumping Operations - Industrial Pump Maintenance and Overhaul - Replacement of Pressure-Containing Pump Components - Custom Industrial Pump Spare Parts |
|---|
Compatible Models
This H1 – FLUID ENDS is designed as a direct replacement for the following machine models and series:
Not sure if it fits your machine? Send us your equipment model or original part number — ask an engineer →
Description
H1 – Fluid Ends
Product Overview
Fluid Ends are essential components in reciprocating pump systems, forming the pressure-containing section where fluid enters, is pressurized, and is discharged. Depending on the pump design, a fluid end may incorporate fluid passages, valve assemblies, sealing interfaces, and connections for high-pressure operation.
Designed for demanding industrial service, fluid ends require appropriate material selection, dimensional accuracy, pressure integrity, and compatibility with the associated pump assembly. Their performance depends on the original equipment design, operating pressure, fluid properties, temperature, and maintenance requirements.
Key Features and Benefits
Pressure-Containing Design: Engineered to meet the specified pressure requirements of the intended pumping application.
Precision Manufacturing: Critical dimensions and connection interfaces are produced according to approved technical drawings.
Application-Specific Materials: Material selection depends on pressure, fluid chemistry, corrosion exposure, and operating conditions.
Replacement Part Support: Suitable for qualified industrial pump maintenance and overhaul projects.
Custom Manufacturing: Production can be evaluated using original part numbers, drawings, or physical samples.
Quality Inspection: Dimensional checks, material verification, and additional testing can be arranged according to the applicable specifications.
Materials and Manufacturing
Fluid ends may be manufactured from specified alloy steels, forged materials, or other engineering materials selected for the required pressure and service environment. Material grade, heat treatment, machining tolerances, surface finish, and inspection procedures must comply with the approved design and applicable engineering standards.
Applications
Fluid ends are commonly associated with reciprocating pumps used in industrial fluid handling, oil and gas operations, drilling, and high-pressure pumping applications. The exact application depends on the pump type and configuration.
Replacement and Custom Manufacturing
We support industrial spare parts sourcing and replacement manufacturing based on original part numbers, engineering drawings, or physical samples. Technical requirements should be reviewed before production to confirm dimensions, material specifications, pressure ratings, connection details, and inspection requirements.
Contact us with your equipment model, part number, or technical drawings to request a quotation and technical review.
Frequently Asked Questions
Need a custom H1 – FLUID ENDS?
Send us your drawing, sample or part number — we'll respond within 24 hours.
