Fluid End Modules

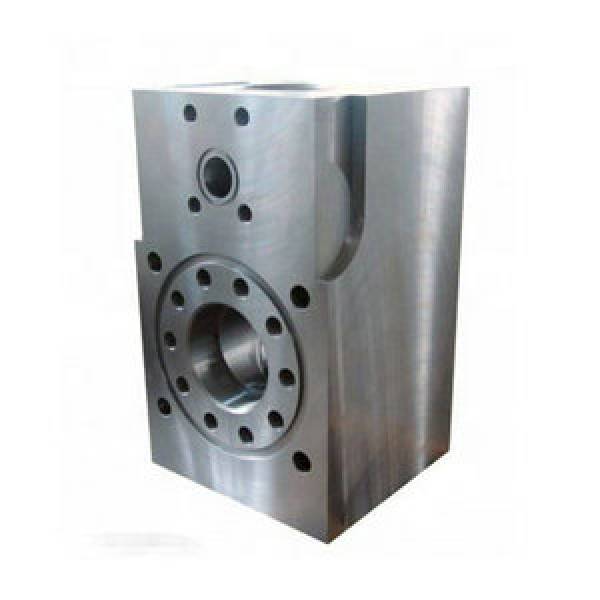

Fluid End Modules are high-pressure components designed for compatible oilfield drilling mud pumps. Manufactured from forged alloy steel with controlled heat treatment and precision machining, these modules help contain and direct drilling fluid during reciprocating pump operation. Replacement modules are available for selected pump models, subject to verification of dimensions, material grade, pressure rating, and OEM specifications.
| Application | - Oil and gas drilling operations - Drilling mud circulation systems - Triplex reciprocating mud pumps - Drilling rig pump maintenance and overhaul - Replacement of worn or damaged fluid-end modules - Oilfield drilling equipment refurbishment - Pressure-containing components for compatible mud pump systems |
|---|
Compatible Models
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Fluid End Modules |
| Product Type | Drilling Mud Pump Fluid End Module |
| Equipment Type | Reciprocating Mud Pump |
| Pump Configuration | Triplex or other supported configuration, subject to model |
| Material | Forged alloy steel; exact grade to be confirmed |
| Possible Material Grades | 35CrMo, 40CrMnMo, or other specified grades, subject to approved design |
| Manufacturing Process | Forging, heat treatment, precision machining |
| Module Design | One-piece or two-piece modular design, depending on pump model |
| Working Pressure | Configuration-dependent; verify against the approved rating |
| Compatible Pump Brands | Selected models from major mud pump manufacturers, subject to verification |
| Inspection | Dimensional, material, and other agreed quality inspections |
| Application | Oil and gas drilling fluid circulation |
| Replacement Basis | OEM part number, drawing, sample, and pump specifications |
Technical note: The listed material grades are examples used in certain fluid-end module products, not a universal specification. Confirm the material certificate, approved drawings, and pressure rating for the actual item before ordering.
| Application | - Oil and gas drilling operations - Drilling mud circulation systems - Triplex reciprocating mud pumps - Drilling rig pump maintenance and overhaul - Replacement of worn or damaged fluid-end modules - Oilfield drilling equipment refurbishment - Pressure-containing components for compatible mud pump systems |
|---|
Compatible Models
This Fluid End Modules is designed as a direct replacement for the following machine models and series:
Not sure if it fits your machine? Send us your equipment model or original part number — ask an engineer →
Description
Fluid End Modules for Oilfield Mud Pumps
Product Overview
Fluid End Modules are essential pressure-containing components of reciprocating drilling mud pumps. Working with the pump's power end, they support the suction and discharge cycles required to circulate drilling fluid through the drilling system.
Depending on the pump design, a fluid end may use a one-piece block or a modular construction with separate suction and discharge sections. The correct design must be selected according to the original pump model, connection dimensions, pressure requirements, and maintenance specifications.
Key Features
Forged alloy steel construction: Material and forging specifications selected according to the approved design.
Controlled heat treatment: Applied as required to achieve the specified mechanical properties.
Precision machining: Critical bores, valve interfaces, sealing surfaces, and mounting features machined to drawing.
Pressure-rated configurations: Available pressure ratings depend on the specific module and pump configuration.
Replacement options: Selected modules can be supplied for compatible drilling mud pumps.
Inspection and quality control: Dimensional checks and material verification can be arranged according to the agreed inspection plan.
Typical Applications
Fluid End Modules are used in oil and gas drilling operations where reciprocating mud pumps circulate drilling fluid under pressure. They are commonly considered during scheduled maintenance, overhaul, and replacement of worn or damaged fluid-end components.
Replacement and Ordering Information
To help identify the correct replacement, please provide the mud pump manufacturer, model, OEM part number, module type, rated working pressure, and available technical drawings or photographs.
Material grade, pressure rating, module geometry, and interchangeability must be confirmed before production or shipment. A similar appearance alone does not establish compatibility or suitability for the intended working pressure.
Frequently Asked Questions
Need a custom Fluid End Modules?
Send us your drawing, sample or part number — we'll respond within 24 hours.
