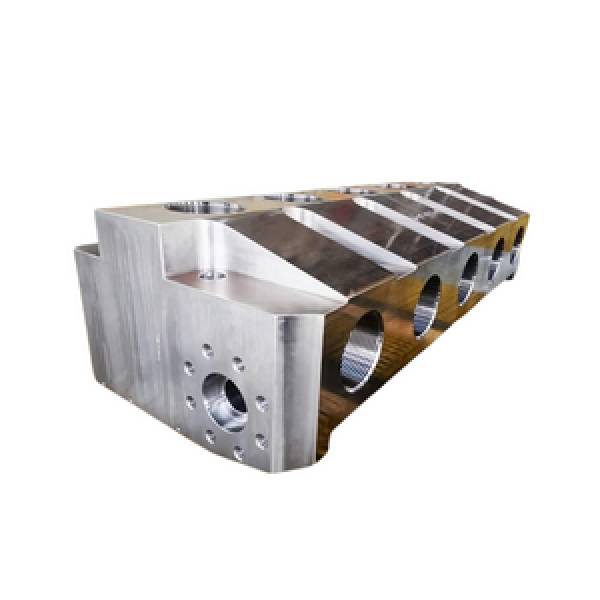

QWS2800 Fluid Ends
QWS2800 Fluid Ends are high-pressure fluid-end assemblies designed for compatible QWS2800-class quintuplex fracturing pumps. Available in alloy steel and stainless steel configurations, they support demanding oilfield operations such as hydraulic fracturing, acidizing, and well servicing. Plunger sizes, material grade, pressure rating, and dimensional compatibility must be confirmed against the required pump configuration.
| Application | - Hydraulic fracturing operations - Oil and gas well stimulation - Acidizing operations - Well killing and related well-service work - High-pressure oilfield fluid pumping - Fracturing pump maintenance and overhaul - Replacement of worn or damaged fluid-end assemblies |
|---|
Compatible Models
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | QWS2800 Fluid Ends |
| Product Model | QWS2800 |
| Product Type | High-Pressure Fluid End Assembly |
| Pump Type | Horizontal, Single-Acting Quintuplex Plunger Pump |
| Pump Power Class | 2,800 HP (approximately 2,088 kW) |
| Number of Plungers | 5 |
| Stroke Length | 8 in (203.2 mm) |
| Available Plunger Sizes | 3.75 in, 4 in, 4.5 in; confirm specific configuration |
| Material Options | Forged alloy steel or stainless steel, subject to specification |
| Maximum Working Pressure | Up to approximately 20,000 psi (137.9 MPa) in certain configurations; verify rating |
| Flow Rate | Depends on plunger size and pump speed |
| Manufacturing Process | Forging, heat treatment, precision machining as specified |
| Inspection | Dimensional, material, and pressure testing as agreed |
| Compatibility | Subject to pump model, drawing, and part-number verification |
| Application | Hydraulic fracturing, acidizing, and oilfield well service |
Technical note: Published QWS2800 specifications vary by supplier and configuration. Maximum pressure is not available at every plunger size and pump speed. Confirm the approved pressure-versus-flow performance table before publishing a definitive operating rating.
| Application | - Hydraulic fracturing operations - Oil and gas well stimulation - Acidizing operations - Well killing and related well-service work - High-pressure oilfield fluid pumping - Fracturing pump maintenance and overhaul - Replacement of worn or damaged fluid-end assemblies |
|---|
Compatible Models
This QWS2800 Fluid Ends is designed as a direct replacement for the following machine models and series:
Not sure if it fits your machine? Send us your equipment model or original part number — ask an engineer →
Description
QWS2800 Fluid Ends for Fracturing Pumps
Product Overview
The QWS2800 Fluid End is the high-pressure fluid-handling assembly of a quintuplex reciprocating plunger pump. It contains the working chambers and associated valve and sealing interfaces that control fluid intake and discharge during each pumping cycle.
Designed for compatible 2,800 HP-class fracturing pump systems, the fluid end is used in demanding oilfield applications requiring high-pressure fluid delivery. Available configurations may include forged alloy steel or stainless steel, depending on the operating conditions and approved design.
Key Features
Quintuplex pump configuration: Designed for compatible five-plunger pump systems.
High-pressure operation: Pressure capability depends on plunger diameter, pump speed, material, and the rated assembly configuration.
Material options: Alloy steel and stainless steel variants may be available.
Multiple plunger sizes: Published configurations include 3.75-inch, 4-inch, and 4.5-inch options; other configurations require confirmation.
Precision-machined interfaces: Valve bores, sealing surfaces, and mounting dimensions must match the approved drawing.
Replacement supply: Available for evaluation against the original pump model, part number, and technical documentation.
Typical Applications
QWS2800 Fluid Ends are used in oilfield pressure-pumping operations, including hydraulic fracturing, acidizing, well killing, and related well-service work. The correct assembly must be selected according to required pressure, flow rate, fluid characteristics, and pump configuration.
Replacement and Ordering Information
Please provide the pump manufacturer and model, original fluid-end part number, required material, plunger size, working pressure, and available drawings or photographs.
Before installation, verify dimensional interchangeability, material traceability, pressure rating, and the approved inspection and testing requirements. A QWS2800 designation alone does not establish that every supplier's fluid end is interchangeable.
