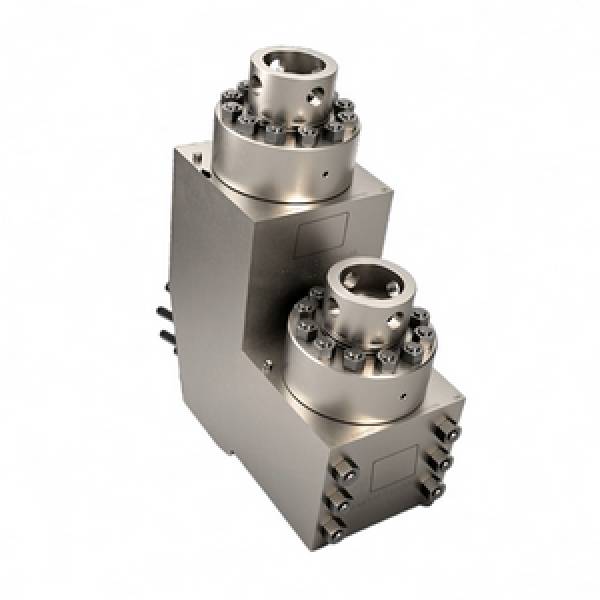

Y-Shaped Mud Pump Modules
Y-Shaped Mud Pump Modules are high-pressure fluid-end components designed for compatible oilfield drilling mud pumps. Their Y-shaped internal flow passages are engineered to improve fluid flow and reduce stress concentration around intersecting bores. Available configurations depend on the pump design, pressure rating, and required suction and discharge arrangement. Material grade, dimensions, and interchangeability must be verified against the applicable technical specifications.
| Application | - Oil and gas drilling operations - High-pressure drilling mud circulation - Compatible triplex drilling mud pumps - Drilling pump fluid-end maintenance and overhaul - Replacement of worn or damaged fluid-end modules - Drilling equipment refurbishment - Applications requiring engineered fluid-end flow passages |
|---|
Compatible Models
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Y-Shaped Mud Pump Modules |
| Product Type | High-Pressure Drilling Mud Pump Fluid-End Module |
| Equipment Type | Reciprocating Drilling Mud Pump |
| Module Design | Y-shaped internal flow passage |
| Construction | One-piece or multi-piece design, depending on the product |
| Material | Forged alloy steel, subject to approved specification |
| Possible Material Grades | 35CrMo, 40CrMnMo, or other specified grades |
| Heat Treatment | According to the approved material and manufacturing specification |
| Rated Working Pressure | To be confirmed for the specific module |
| Suction/Discharge Arrangement | Design-dependent |
| Valve Assembly | Must match the module design |
| Manufacturing Process | Forging, heat treatment, precision machining |
| Inspection | Dimensional, material, and non-destructive testing as specified |
| Pump Compatibility | Requires confirmation of model and part number |
| Application | Oil and gas drilling fluid circulation systems |
Important: GD Energy Products publishes a specific patented Y-shaped drilling module rated for operating pressures up to 10,000 psi. This rating should only be used if the product being offered is confirmed to match that design; it is not a universal rating for all Y-shaped modules. <Cite refs={["turn136193search0"]}/>
| Application | - Oil and gas drilling operations - High-pressure drilling mud circulation - Compatible triplex drilling mud pumps - Drilling pump fluid-end maintenance and overhaul - Replacement of worn or damaged fluid-end modules - Drilling equipment refurbishment - Applications requiring engineered fluid-end flow passages |
|---|
Compatible Models
This Y-Shaped Mud Pump Modules is designed as a direct replacement for the following machine models and series:
Not sure if it fits your machine? Send us your equipment model or original part number — ask an engineer →
Description
Y-Shaped Mud Pump Modules
Product Overview
Y-Shaped Mud Pump Modules are specialized fluid-end components used in compatible reciprocating drilling mud pumps. The Y-shaped internal passage connects the relevant fluid-flow paths within the module and is designed to support efficient drilling-fluid movement under high-pressure operating conditions.
Compared with some conventional fluid-end designs, an optimized Y-shaped bore geometry can reduce abrupt flow transitions and help manage stress concentration around intersecting passages. Actual performance depends on the module design, manufacturing quality, operating pressure, and drilling-fluid conditions.
Key Features
Y-shaped internal flow geometry: Designed to support smoother fluid flow through the module.
High-pressure construction: Available pressure ratings depend on the specific design and approved operating limits.
Forged alloy steel: Material and heat treatment are selected according to the applicable engineering specification.
Modular construction: Certain designs use separate suction and discharge modules to simplify inspection and replacement.
Precision-machined passages: Critical bores, valve interfaces, and sealing surfaces are machined to specified tolerances.
Maintenance-oriented design: Replaceable components can help simplify service work when supported by the original module architecture.
Typical Applications
Y-Shaped Mud Pump Modules are used in compatible drilling mud pumps for oil and gas drilling operations. They are designed for demanding fluid-circulation duties where pressure containment, fatigue resistance, and reliable valve operation are important.
Replacement and Ordering Information
Before ordering, confirm the pump manufacturer and model, module part number, rated working pressure, module arrangement, connection dimensions, and applicable valve assembly.
The Y-shaped design is not automatically interchangeable with conventional L-shaped, two-piece, or other fluid-end modules. Replacement suitability must be established using approved drawings and manufacturer specifications.
