| OILWELL A-1700PT-L | |||
| FLUID END MODULE & ACCESSORIES | |||
| ITEM | PART# | DESCRIPTION | QTY |
| PREM-FEMA17DISSW | MODULE,STUDDED DISCHARGE(INCLUDES ITEMS 1,3-11) | 3 | |
| 1 | PREM-FEMA17DISSW | DISCHARGE MODULE ONLY | 3 |
| PREM-FEMA17SUCSW | MODULE,STUDDED SUCTION (INCLUDES ITEMS 2,9-10) | 3 | |
| 2 | PREM-FEMA17SUCSW | SUCTION MODULE ONLY | 3 |
| 3 | PREM-OWA17DMSSW | STUD,DISCHARGE MANIFOLD | 12 |
| 4 | PREM-0-7601-0630-28 | NUT, DISCHARGE MANIFOLD STUD | 12 |
| 5 | PREM-OWA17PFSSW | STUD,POWER FRAME | 12 |
| 6 | PREM-75510126 | NUT,POWER FRAME STUD | 12 |
| 7 | PREM-OWA17DSUCSSW | STUD,DISCHARGE TO SUCTION MODULE | 18 |
| 8 | PREM-0-7601-0630-17 | NUT,FOR ABOVE STUDE | 18 |
| 9 | PREM-OWA17TRSSW | STUD, THREADED RING | 72 |
| 10 | PREM-6300200 | NUT, THREADED RING STUD | 72 |
| 11 | PREM-6511416 | PIN,DOWELL | 6 |
| 12 | PREM-OWA17LRPLATESW | PLATE,LINER RETAINER | 3 |
| 13 | PREM-PEP68 | CAPSCREW,LINER RETAINER PLATE | 24 |
| 14 | PREM-1290344 | SEAL,DISCHARGE TO SUCTION MODULE | 3 |
| 15 | PREM-20100008 | SEAL,WEAR PLATE–RUBBER(SEE DATASHEET FOR ALTERNATE MATERIALS) | 3 |
| 16 | PREM-10300184 | PLATE WEAR | 3 |
| 17 | PREM-OWA17LLNSW | NUT,LINER LOCK | 3 |
| 18 | PREM-07207129 | SEAL,VALVE COVER-RUBBER(SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 |
| 19 | PREM-PEP73 | SCREW,VALVE COVER RETAINER | 12 |
| 20 | PREM-OWA17VGASW | GUIDE,VALVE(INCLUDES ITEMS 20 & 22) | 6 |
| 21 | PREM-OWA17VCASSYSW | PLUG,VALVE COVER(INCLUDLES ITEMS 19-22) | 6 |
| 22 | PREM-PZ789VGI* | BUSHING,VALVE GUIDE | 6 |
| 23 | PREM-OWA17FLGSW | RING,THREADED | 6 |
| 24 | PREM-OWA17CASW | CAP,THREADED | 6 |
| 25 | PREM-10300201 | GASKET,SUCTION MANIFOLD | 3 |
| 26 | PREM-99609345 | GASKET,DISCHARGE MANIFOLD | 3 |
| 27 | PREM-75634382 | CAPSCREW,SUCTION MANIFOLD | 24 |
| 28 | PREM-PEP90 | SEPREMCREW,LINER RETAINER | 9 |
Premium can make all model mud pump liners of Southwest/Southwest Oilfield Products.
Part number of T1300/1600 mud pump liner:
| Southwest T1300/1600 | 6307G06 PREM | 6307G08 PREM | 6307G1 PREM | 6307G3 PREM | 6307G5 PREM | 6307G7 PREM | 6307G9 PREM |
Southwest Oilfield Products, Inc. manufacture rugged and reliable equipment for specific needs including Mud Pump Fluid Ends, Frac Pump Fluid Ends, Liners, Pistons and other consumable items.
1947 Founded with the Design of the First Bonded Piston, the Fail Safe Piston
1974 Introduced the Two Piece L-Shaped Fluid-End
1988 Introduced the Dual-Duro Piston
1996 Introduced Ceramic Liners
2000 Introduced Zirconia Liners
2004 Introduced Black Cat Piston
2013 Introduced Module Service Tool Kits; Research and Development of Frac Pump Consumables
2014 Introduced BullDog Piston
| GARDNER DENVER PZ-7, PZ-8, PZ-9 W/ WEAR PLATE FLUID END MODULE & ACCESSORIES | ||||
| ITEM # | OEM PART # | MISSION PART # | DESCRIPTION | QTY PER PUMP |
| FEMPZ789WPCA | ASSY, COMPLETE FLUID END MODULE W/ WEAR PLATE & SEAL (INCLUDES ITEMS 1-25) | 3 | ||
| 1 | FEMPZ789WP | MODULE, STUDDED FLUID END W/ WEAR PLATE GROOVE (INCLUDES ITEMS 1-25) | 3 | |
| 2 | 79L188 | PZ789LCS | STUD, FRAME & LINER CLAMP | 24 |
| 3 | 50B36 | 6300200 | NUT, FRAME & LINER CLAMP STUD | 48 |
| 4 | 79L73 | PZ789GPFS | STUD, FRAME | 12 |
| 5 | 50AQ30 | PZ789PFSN | NUT, FRAME STUD | 12 |
| 6 | 79AL6 | PZ789TRS | STUD, VALVE COVER | 48 |
| 7 | 50B34 | PZ789TRSN | NUT, VALVE COVER STUD | 48 |
| 8 | 202PZL110 | PZ789DMS | STUD, DISCHARGE MANIFOLD | 12 |
| 9 | 50B34 | PZ789TRSN | NUT, DISCHARGE MANIFOLD STUD | 12 |
| 10 | 2011861 | PZ789EXPR | RING, VALVE COVER GASKET EXPANDER | 6 |
| 11 | 2011862 | 7916749 | GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 |
| 12 | 2007674 | PZ789VGI | BUSHING, VALVE GUIDE | 6 |
| 13 | 2011860 | PZ789VC | COVER, VALVE | 6 |
| 14 | 2011699 | PZ789FLG | RING, VALVE COVER THREADED (2 1/2" THICK) | 6 |
| 14A | PZ789HFLG | RING, HEAVY VALVE COVER THREADED (3" THICK) | 6 | |
| 15 | 2011857 | PZ789CAP | CAP, VALVE COVER LOCK | 6 |
| 16 | 2011701 | PZ789PL | PLATE, RETAINER | 6 |
| 17 | 2011700 | PZ789LVG | GUIDE, LOWER VALVE SUCTION | 3 |
| 18 | 95W2 | PZLVGAWASHER | WASHER, VALVE GUIDE LOCK | 6 |
| 19 | 655EE06S | PZLVGABOLT | SCREW 1/2"x1 3/4" 316SS HX HD C/S | 6 |
| 20 | 25AL35 | 7916747 | GASKET, DISCHARGE MANIFOLD | 3 |
| 21 | 25G41 | 7923283 | GASKET, SUCTION MANIFOLD | 3 |
| 22 | 1PV14 | PZ789LC | CLAMP, LINER | 3 |
| 23 | PZ910WPINTL | PLATE, WEAR | 3 | |
| 24 | 20100019 | SEAL, WEAR PLATE | 3 | |
| 25 | 2011706 | PZ789LVGA | ASSY., LOWER VALVE GUIDE (INCLUDES 12, 16 -19) | 3 |
| 26 | 75A74N | 700044111 | CAPSCREW, SUCTION MANIFOLD - NOT SHOWN | 24 |
| 27 | 7619066 | WASHER, SUCTION MANIFOLD CAPSCREW LOCK | 24 | |
| 7924509 | MODULE SEAL KIT: (KIT INCLUDES CYLINDER HEAD, VALVE COVER GASKET, LINER GASKET, DISCHARGE MANIFOLD GASKET, SUCTION MANIFOLD GASKET) | 3 | ||
Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036
Fluid End Modules
National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®
Pulsation Dampener
Hydril Type "K" Pulsation Dampener
Popular Mud Pump Spare Parts
Parts are available for these popular pump models:
BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32
WEATHERFORD/Ellis Williams: E-447, E-2200
Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800
Romania: 3PN-1000, 3PN-1600, 3PN-2000
And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.

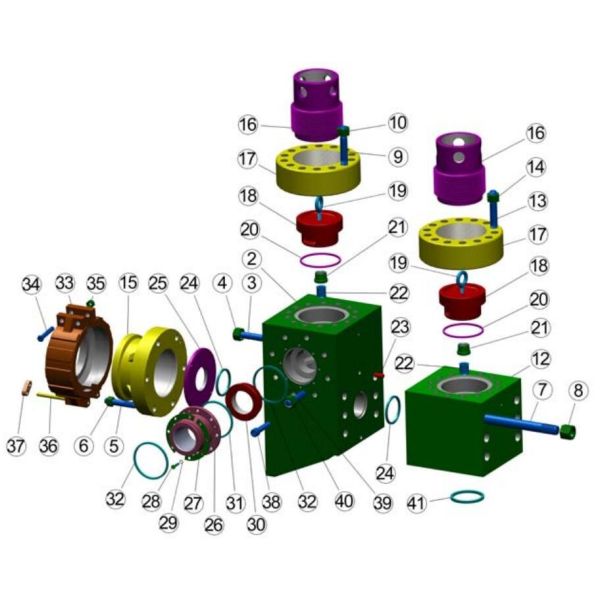

Item | PREMIUM Part Number | Description | Qty per Pump |
| 1 | P-1295240 | Discharge Module Studded, (incl. Items 2-10) | 3 |
| 2 | P-1295241 | Discharge Module, Only | 3 |
| 3 | P-6300320 | Nut, 2“ -8 Hvy. Hex | 18 |
| 4 | P-2408048 | Stud, 2“ -8UNC X22 7/8” | 18 |
| 5 | P-6300180 | Nut, 1 1/8“ Hvy. Hex | 18 |
| 6 | P-2408028 | Stud, 1 1/8“ X 6 3/8”, Discharge to Liner Bushing | 18 |
| 7 | P-6300281 | Nut, 1 3/4“ Hvy. Hex | 18 |
| 8 | P-2408033 | Stud, 1 3/4“ X 21 1/8”, Discharge to Suction | 18 |
| 9 | P-6300240 | Nut, 1 1/2 Hvy. Hex | 36 |
| 10 | P-2408027 | Stud, 1 1/2“ X 7 7/8” Top, Thread Ring | 36 |
| 11 | P-1295243 | Suction Module Studded, (incl. Items 12-14) | 3 |
| 12 | P-1295244 | Suction Module, Only | 3 |
| 13 | P-6300240 | Nut, 1 1/2 Hvy. Hex | 36 |
| 14 | P-2408049 | Stud, 1 1/2“ X 9 7/8” Top, Thread Ring | 36 |
| 15 | P-1295165 | Bushing, Liner | 3 |
| 16 | P-1295174 | Seal Retainer | 6 |
| 17 | P-1295172 | Valve Cover | 6 |
| 18 | Non | Screw, Wedge Adjusting | 6 |
| 19 | Non | Nut, Wedge Adjusting | 6 |
| 20 | Non | Washer, Wedge Adjusting Screw | 6 |
| 21 | P-1295176 | Ring, Threaded | 6 |
| 22 | Non | Wedge Assembly | 6 |
| 23 | P-1540163 | Gasket, Valve Cover | 6 |
| 24 | P-1292140 | Holder, Valve Guide Insert | 6 |
| 25 | P-1292141 | Insert, Valve Guide | 6 |
| 26 | P-6571620 | Pin Dowell | 6 |
| 27 | P-1295266 | Plate, Wear | 3 |
| 28 | P-1295252 | Connector, Discharge | 2 |
| 29 | P-7000-307-11 | Screw Hex Head | 16 |
| 30 | P-7619050 | Washer, Lock | 16 |
| 31 | P-1295253 | Adapter, Discharge Connector | 2 |
| 32 | P-2410031-440 | Packing, Rectangular | 2 |
| 33 | P-2410031-438 | Packing, Rectangular | 4 |
| 34 | P-1295167 | Clamp, Liner | 3 |
| 35 | P-7000491-10 | Screw 7/8 X 4 1/2“ Hex Hd. w/ Lock Washer | 6 |
| 36 | P-6309140 | Nut, 7/8“ Lock Type | 6 |
| 37 | P-1292169 | Pin, Liner Clamp | 3 |
| 38 | P-1295168 | Connector, Liner Clamp | 3 |
| 39 | P-2408015 | Stud 1 1/2“ x 7 1/2” | 16 |
| 40 | P-6300240 | Nut, 1 1/2“ Hvy. Hex | 16 |
SOUTHWEST 8477-25A FLUID END FOR GARDNER DENVER PZ-11/PZ-10
| FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP |
| SOUTHWEST 7500 P.S.I. | GARDNER DENVER PZ11/10 | 6 ¾” X 11” |
| ITEM | P/N | DESCRIPTION | QTY. REQ’D |
| 8477-25A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,18,19,20,21,22,23,24,25,26,27,28,29,30,31,34,35,36,38,39) | ||
| 1 | 1367Y-XX 1367AY-XX | LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (Y); AND FOR BORE SIZE (XX) LINER 6 ¼” THRU 6 ¾” | 3 |
| 2 | 2930-XXU** 2974-XXU** | LINER SEAL LINER SEAL FOR LINERS 6 ¼” THRU 6 ¾” | 3 |
| 3 | 8477-29 | ALIGNMENT RING | 3 |
| 4 | 8477-30 | WEARPLATE (REPLACES WEARPLATE NO. 8477-28) | 3 |
| 5 | 2988U** | WEARPLATE, MODULE, AND DISCHARGE MANIFOLD SEAL | 9 |
| 6 | XX-BYY | PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)) | 3 |
| 7 | 568-225 | PISTON O-RING | 3 |
| 8 | 6278-25 | PISTON ROD (WITH 1 ½-8-UN ELASTIC STOP NUT) | 3 |
| 9 | API-4ESN | PISTON ROD ELASTIC STOP NUT | 3 |
| 10 | 1290-2 | PISTON ROD CONNECTING STUD | 3 |
| 11 | 6279-1 | SUB ROD (CLAMP TYPE; SCREW TYPE SUB ROD IS PART NO. 6280-1) | 3 |
| 12 | 1277CW | ROD CLAMP (WITH WATER JACKET) (CONSIST OF 12A, 12B, 12C) | 3 |
| 12A | 1200120 | SPRAY PIPE (3/8” x 12” GALVANIZED AND THREADED ON ONE END) | 3 |
| 12B | 4018-96 | BOLT (5/8”-11UN GRADE 8 BOLT WITH LOCK NUT AND WASHER) | 6 |
| 12C | 1200H30 | HOSE (1/2” x 30” WITH 1/2” MALE AND 3/8” MALE CONNECTIONS) | 3 |
| 13 | 1200G77 | PONY ROD (CLAMP TYPE; SCREW TYPE PONY ROD IS PART NO. 1200G88) | 3 |
| 14 | VALVE | 6 | |
| 15 | VALVE INSERT | 6 | |
| 16 | VALVE SPRING | 6 | |
| 17 | VALVE SEAT | 6 | |
| SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS) | 1 | |
| 18 | 4488-25 | VALVE COVER FLANGE | 6 |
| 19 | 4588-25 | SCREW GLAND | 6 |
| 20 | 4688-25 | PLUG (COMPLETE WITH VALVE GUIDE, BUSHING, AND SCREWS; INCLUDES ITEMS 22, 23, & 24) | 6 |
| 21 | P115 | HP VALVE COVER PLUG NITRILE SEAL (P115U URETHANE SEAL AVAILABLE) | 6 |
| 22 | 4788-25R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 23 | 4700I | VALVE GUIDE BUSHING | 6 |
| 24 | 4018-18 | VALVE GUIDE SCREW | 12 |
| 25 | 4015-2 | VALVE COVER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 72 |
| 26 | 4019-46 | POWER END STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 24 |
| 27 | 6477-25 | LINER RETAINER FLANGE | 3 |
| 28 | 4019-45 | LINER RETAINER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 24 |
| 29 | 6577-25 | LINER RETAINER NUT | 3 |
| 30 | 4019-44 | SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) | 18 |
| 31 | 4017-77 | SUCTION MANIFOLD CAP SCREW | 24 |
| 32 | 8577-25 | SUCTION MANIFOLD | 1 |
| 33 | AJO245 | SUCTION MANIFOLD SEAL | 3 |
| 34 | 8477-26 | SUCTION MODULE | 3 |
| 35 | 8477-27 | DISCHARGE MODULE | 3 |
| 36 | 8488-5 | DOWEL PIN | 6 |
| 37 | 8377-27 | DISCHARGE MANIFOLD (For serial numbers 9222 & below, use 8377-25 to keep from relocating discharge piping) | 1 |
| 38 | 4019-45 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 12 |
| IDECO | T-800 | 7 x 9 | ||||||||
| LINERS | LINER GASKETS | PISTONS | PISTON REPLACEMENT RUBBERS | |||||||
| SIZE | CERAMIC | SUPREME | RUBBER | URETHANE | WHITE LIGHTNING | SUPREME | GREEN DUO | FLEXLIP | WHITE LIGHTNING | SUPREME |
| 4" | 012180170 | 1502052 | 011102926 | 015180102 | ||||||
| 4 1/4" | ||||||||||
| 4 1/2" | 07502450 | 05502450 | 07916783 | 07916789 | 012180197 | 012180196 | 1502054 | 011102928 | 015180145 | 015180144 |
| 4 3/4" | ||||||||||
| 5" | 07502500 | 05502500 | 07916783 | 07916789 | 012180254 | 012180253 | 1502056 | 011103033 | 015180186 | 015180185 |
| 5 1/4" | ||||||||||
| 5 1/2" | 07502550 | 05502550 | 07916783 | 07916789 | 012180338 | 012180337 | 1502058 | 011103132 | 015180228 | 015180227 |
| 5 3/4" | ||||||||||
| 6" | 07502600 | 05502600 | 07916783 | 07916789 | 012180395 | 012180394 | 1502060 | 011103629 | 015180269 | 015180268 |
| 6 1/4" | 05502625 | 07916783 | 07916789 | 012180493 | 1502061 | 011103322 | 015180285 | 015180284 | ||
| 6 1/2" | 07502650 | 05502650 | 07916783 | 07916789 | 012180536 | 012180535 | 1502062 | 011103827 | 015180301 | 015180300 |
| 6 3/4" | ||||||||||
| 7" | 07502700 | 05502700 | 07916783 | 07916789 | 012180619 | 012180618 | 1502064 | 011103926 | 015180343 | 015180342 |
| 7 1/4" | ||||||||||
| 7 1/2" | ||||||||||
| 7 3/4" | ||||||||||
| 8" | ||||||||||
| VALVES, SEATS, SPRINGS & INSERTS | GASKETS | |||||||||
| ROUGHNECK | ROUGHNECK HP | SUPREME | OEM | URETHANE | L STYLE | URETHANE | ||||
| VALVE-White Lightning Insert | 9700367 | 9700359 | 060152809 | Valve Cover | 07916783 | 07916789 | ||||
| VALVE-Urethane Insert | 9700285 | 9700353 | 060152808 | Cylinder Head | 07916783 | 07916789 | ||||
| VALVE-Rubber Insert | 9702601 | N/A | 060122702 | Plug Seal | ||||||
| SEAT | 9702547 | 9702547 | 061102653 | HYDRA-LOK | OEM | MISSION L | ||||
| SPRING | 8201684 | 8201684 | 055413421 | Complete Assembly | ||||||
| SPRING-Stainless | 055402945 | |||||||||
| INSERT-Urethane | 9705090 | 9700363 | 062400106 | MODULES | OEM | MISSION L | ||||
| INSERT-Rubber | 9705155 | N/A | 062400056 | Complete Assembly | FEMIDT1000CA | |||||
| SEAT PULLER ASSEMBLIES | Discharge Module Studded | |||||||||
| Puller Assembly 1 | M 1060 | M 1060 | M 1060 | Suction Module Studded | ||||||
| Puller Head | 8401977 | 8401977 | 181235052 | One Piece OEM Style Studded | FEMIDT1000 | |||||
| Crosshead Extension Rods, Quick Connect Rods, Self Aligning Rod Assemblies & Piston Rods | ||||||||||
| Crosshead Rod | Quick Connect | Self Aligning Rod Assembly | Pony Rod Baffle | Piston Rod | Sub Rod | Stud | Rod Nut | Clamp | Covered Rod Nut | Pony Rod Seal |
| 1681516 | 1095301 | 07208501 | 1551717 | 005402052 | PP604800 | CRN-1 | ||||
| IDECO | T-500 | 7 x 8 | ||||||||
| LINERS | LINER GASKETS | PISTONS | PISTON REPLACEMENT RUBBERS | |||||||
| SIZE | CERAMIC | SUPREME | RUBBER | URETHANE | WHITE LIGHTNING | SUPREME | GREEN DUO | FLEXLIP | WHITE LIGHTNING | SUPREME |
| 4" | 012180170 | 1502052 | 011102926 | 015180102 | ||||||
| 4 1/4" | ||||||||||
| 4 1/2" | 07512450 | 05512450 | 07916783 | 07916789 | 012180197 | 012180196 | 1502054 | 011102928 | 015180145 | 015180144 |
| 4 3/4" | ||||||||||
| 5" | 07512500 | 05512500 | 07916783 | 07916789 | 012180254 | 012180253 | 1502056 | 011103033 | 015180186 | 015180185 |
| 5 1/4" | ||||||||||
| 5 1/2" | 07512550 | 05512550 | 07916783 | 07916789 | 012180338 | 012180337 | 1502058 | 011103132 | 015180228 | 015180227 |
| 5 3/4" | ||||||||||
| 6" | 07512600 | 05512600 | 07916783 | 07916789 | 012180395 | 012180394 | 1502060 | 011103629 | 015180269 | 015180268 |
| 6 1/4" | 05512625 | 07916783 | 07916789 | 012180493 | 1502061 | 011103322 | 015180285 | 015180284 | ||
| 6 1/2" | 07512650 | 05512650 | 07916783 | 07916789 | 012180536 | 012180535 | 1502062 | 011103827 | 015180301 | 015180300 |
| 6 3/4" | ||||||||||
| 7" | 07512700 | 05512700 | 07916783 | 07916789 | 012180619 | 012180618 | 1502064 | 011103926 | 015180343 | 015180342 |
| 7 1/4" | ||||||||||
| 7 1/2" | ||||||||||
| 7 3/4" | ||||||||||
| 8" | ||||||||||
| VALVES, SEATS, SPRINGS & INSERTS | GASKETS | |||||||||
| ROUGHNECK | ROUGHNECK HP | SUPREME | OEM | URETHANE | L STYLE | URETHANE | ||||
| VALVE-White Lightning Insert | 9700367 | 9700359 | 060152809 | Valve Cover | 07916783 | 07916789 | ||||
| VALVE-Urethane Insert | 9700285 | 9700353 | 060152808 | Cylinder Head | 07916783 | 07916789 | ||||
| VALVE-Rubber Insert | 9702601 | N/A | 060122702 | Plug Seal | ||||||
| SEAT | 9702547 | 9702547 | 061102653 | HYDRA-LOK | OEM | MISSION L | ||||
| SPRING | 8201684 | 8201684 | 055413421 | Complete Assembly | ||||||
| SPRING-Stainless | 055402945 | |||||||||
| INSERT-Urethane | 9705090 | 9700363 | 062400106 | MODULES | OEM | MISSION L | ||||
| INSERT-Rubber | 9705155 | N/A | 062400056 | Complete Assembly | FEMIDT1000CA | |||||
| SEAT PULLER ASSEMBLIES | Discharge Module Studded | |||||||||
| Puller Assembly 1 | M 1060 | M 1060 | M 1060 | Suction Module Studded | ||||||
| Puller Head | 8401977 | 8401977 | 181235052 | One Piece OEM Style Studded | FEMIDT1000 | |||||
| Crosshead Extension Rods, Quick Connect Rods, Self Aligning Rod Assemblies & Piston Rods | ||||||||||
| Crosshead Rod | Quick Connect | Self Aligning Rod Assembly | Pony Rod Baffle | Piston Rod | Sub Rod | Stud | Rod Nut | Clamp | Covered Rod Nut | Pony Rod Seal |
| 07913082 | 07208500 | 1551718 | 005402052 | PP604500 | CRN-1 | 07931170 | ||||
Contact:Mr Liu
Mobile:15869109368
Tel:86-571-89967020
E-mail:info@dawopu.com
Address:No151 ,ZiDingXiang Rd, Hangzhou. Zhejiang Province, China
