Fracking Fluid Ends

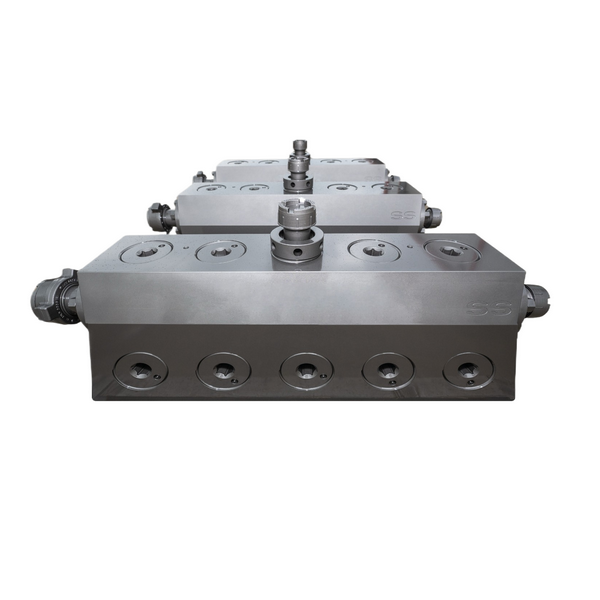

Fracking Fluid Ends – High-Pressure Pump Components by Dawopu

Fracking Fluid Ends are critical components used in hydraulic fracturing pumps within the oil and gas industry. These components form the high-pressure section of a reciprocating pump and are responsible for containing, directing, and pressurizing fracturing fluid before it is injected into underground formations. Because hydraulic fracturing operations require extremely high pressure and continuous operation, the design, material strength, and machining precision of the fluid end are essential for reliable performance.

Dawopu specializes in manufacturing high-quality Fracking Fluid Ends using advanced forging, heat treatment, and precision CNC machining technologies. Designed for durability, corrosion resistance, and high pressure capability, Dawopu fluid ends are suitable for modern fracturing pumps operating in demanding oilfield environments.

What Are Fracking Fluid Ends?

A Fracking Fluid End is the hydraulic section of a fracturing pump that houses the internal flow channels and valve assemblies responsible for pumping high-pressure fracturing fluid. These components handle extreme pressures and abrasive fluids that often contain sand, chemicals, and proppants.

During operation, the pump plunger moves back and forth, drawing fracturing fluid into the chamber through the suction valve and forcing it out through the discharge valve at extremely high pressure. The fluid end must withstand both mechanical stress and chemical exposure, making material quality and structural integrity crucial.

Dawopu Fracking Fluid Ends are designed with reinforced structures and optimized internal flow paths to ensure stable high-pressure performance and long service life.

Materials Used in Dawopu Fracking Fluid Ends

Hydraulic fracturing environments are highly demanding, requiring materials that can resist pressure, abrasion, and corrosion. Dawopu manufactures fracking fluid ends using high-strength alloy steels and corrosion-resistant materials.

Alloy Steel Materials

• AISI 4130 Alloy Steel

• AISI 4140 Alloy Steel

• High-strength forged steel

These materials provide excellent fatigue resistance and structural strength for high-pressure pumping systems.

Stainless Steel Options

For corrosive environments or specialized fracturing fluids, Dawopu also offers stainless steel fluid ends made from:

• 316 / 316L Stainless Steel

• 17-4PH Stainless Steel

• Duplex Stainless Steel

• Super Duplex Stainless Steel

These materials offer enhanced corrosion resistance and longer service life in aggressive environments.

Technical Parameters of Dawopu Fracking Fluid Ends

The performance specifications of Fracking Fluid Ends depend on pump size and operational requirements. Typical parameters include:

Working Pressure

• 5,000 PSI – 20,000 PSI

• Maximum pressure up to 25,000 PSI

Flow Capacity

• 200 L/min – 6,000 L/min depending on pump configuration

Operating Temperature

• −20°C to 200°C

Material Hardness

• HRC 28 – HRC 35 after heat treatment

Machining Precision

• CNC machining tolerance up to ±0.01 mm

Surface Treatment

• Polished internal flow passages

• Anti-corrosion surface treatment

• Wear-resistant coatings (optional)

These technical specifications ensure that Dawopu Fracking Fluid Ends can operate reliably under extreme pressure and harsh field conditions.

Manufacturing Process

Producing a high-performance fracking fluid end requires advanced manufacturing techniques and strict quality control. Dawopu follows a comprehensive production process to ensure durability and precision.

The manufacturing process includes:

1. Forged alloy steel raw material selection

2. Heat treatment to enhance mechanical strength

3. Precision CNC machining

4. Deep hole drilling for internal high-pressure channels

5. Valve seat and chamber machining

6. Surface finishing and polishing

7. Non-destructive testing (NDT) such as ultrasonic inspection

8. Pressure testing and dimensional verification

Through this process, Dawopu ensures that every fracking fluid end meets high industrial standards for safety and performance.

Performance Advantages

The Dawopu Fracking Fluid Ends offer several key advantages for oilfield pumping operations:

High Pressure Resistance

Solid forged structures and optimized internal design enable the fluid end to withstand extremely high operating pressures.

Excellent Wear Resistance

Advanced materials and precision machining reduce internal wear caused by abrasive fracturing fluids containing sand and proppants.

Corrosion Protection

Optional stainless steel and duplex materials improve resistance to chemical corrosion.

Extended Service Life

High-strength materials and proper heat treatment significantly increase operational life.

Improved Pump Efficiency

Optimized internal flow channels reduce turbulence and pressure loss.

Applications of Fracking Fluid Ends

Fracking Fluid Ends manufactured by Dawopu are widely used in oilfield pumping systems and high-pressure industrial applications.

Hydraulic Fracturing Pumps

The main application is in fracturing pumps used in oil and gas extraction operations.

High-Pressure Injection Systems

Used for injecting fluids into underground formations during energy production processes.

Oilfield Pumping Equipment

Suitable for various oilfield pumping units requiring durable high-pressure components.

Custom Fracking Fluid Ends by Dawopu

Different fracturing pump models require specific fluid end designs. Dawopu provides customized fracking fluid ends based on customer drawings or technical specifications.

Customization options include:

• Different pressure ratings

• Custom valve and port configurations

• Special alloy materials

• Corrosion-resistant coatings

• OEM manufacturing for pump manufacturers

With strong engineering capability and advanced machining technology, Dawopu can produce complex fluid end components with high precision and consistent quality.

Why Choose Dawopu

Selecting the right supplier for high-pressure pump components is critical for reliable oilfield operations. Dawopu provides several advantages:

• Advanced CNC machining capability

• High-strength forged materials

• Strict quality control and testing

• Custom manufacturing solutions

• Competitive pricing for global markets

• Reliable supply for OEM and aftermarket needs

With extensive experience in precision machining and industrial component production, Dawopu has become a trusted manufacturer of fracking fluid ends and other high-pressure pump components.
