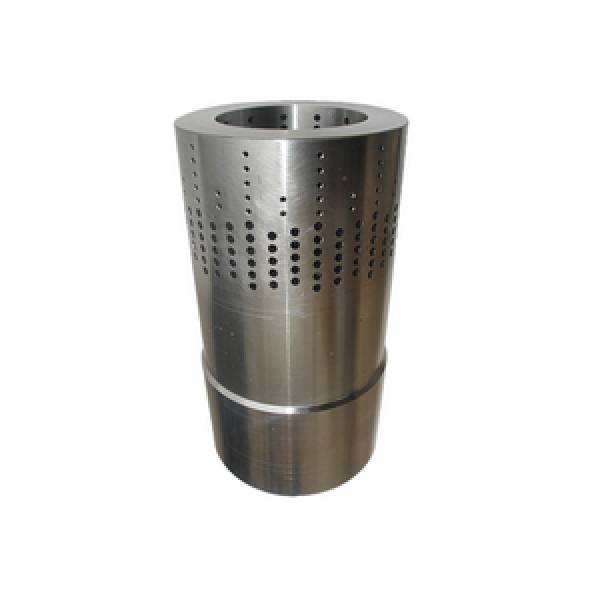

Multi layer valve cage internals

Product Type: Multi Layer Valve Cage Internals
Component: Control Valve Internal / Valve Cage Assembly
Design: Multi-layer flow-control cage
Function: Flow regulation, pressure reduction and flow stabilization
Flow Characteristic: Customized according to valve design and process requirements
Material: Stainless Steel, Alloy Steel, Carbon Steel or other engineering alloys
Typical Materials: 316 / 316L, 410, 420, 17-4 PH, F6a, F22 and other alloys, subject to application
Surface Treatment: Hardening, coating, nitriding or other treatments as required
Manufacturing Process: CNC machining, precision turning, milling, drilling and grinding
Dimensional Accuracy: Manufactured according to customer drawings and applicable tolerances
Working Temperature: Application dependent
Working Pressure: Application dependent
Media: Steam, gas, water, oil, chemical and other process fluids
Connection / Fit: Designed to match the specified control valve assembly
Inspection: Dimensional inspection and material verification available
Customization: Available according to drawings, samples, valve model or technical specifications

Multi layer valve cage internals are precision-manufactured valve components designed to control and stabilize fluid flow inside industrial control valves. The multi-layer cage structure creates controlled flow passages and pressure reduction stages, helping to improve flow regulation while reducing turbulence, aerodynamic or hydrodynamic noise, vibration and erosion.

These valve cage internals are commonly used in demanding applications where conventional single-stage flow-control components may not provide sufficient pressure control or noise reduction. The internal geometry can be engineered according to the valve body, plug, seat and operating conditions to achieve the required flow characteristics and pressure-control performance.

We can manufacture multi layer valve cage internals according to original drawings, samples, dimensions or technical specifications. Different materials, surface treatments and internal configurations can be supplied depending on the working medium, temperature, pressure, flow velocity and corrosion or erosion requirements.

Typical applications include steam, gas, liquid, chemical, petrochemical, power generation and other industrial process-control systems. Precision machining and dimensional inspection help ensure proper fit and reliable operation within the valve assembly.
