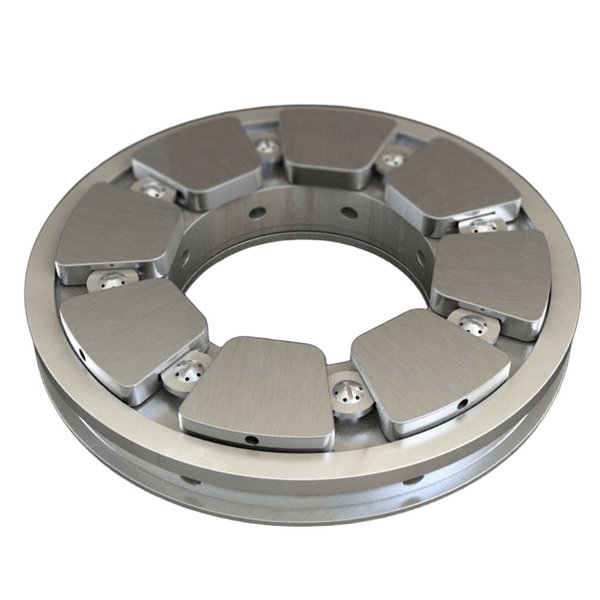

Compact Equalising Thrust Bearings

High-Performance Compact Equalising Thrust Bearings for Industrial Machinery

Product Overview

Compact Equalising Thrust Bearings are specially engineered bearing assemblies designed to absorb and distribute axial loads evenly across rotating machinery components. These bearings play a critical role in maintaining shaft alignment, reducing friction, compensating for load variations, and extending the operational life of industrial equipment.

Unlike conventional thrust bearings, compact equalising thrust bearings incorporate a self-equalising design that ensures uniform load distribution across all bearing pads. This feature significantly reduces localized stress concentrations, minimizes wear, and improves overall machine reliability.

Widely used in pumps, gearboxes, turbines, compressors, wastewater treatment equipment, agricultural machinery, marine propulsion systems, and heavy industrial applications, compact equalising thrust bearings provide exceptional performance under demanding operating conditions.

Key Features

Equal Load Distribution

The equalising mechanism automatically balances axial loads among individual bearing pads, reducing uneven wear and improving service life.

Compact Design

Engineered with a space-saving structure, allowing installation in equipment where available mounting space is limited.

High Axial Load Capacity

Capable of supporting substantial thrust loads while maintaining excellent stability and operational efficiency.

Reduced Friction

Precision-machined bearing surfaces minimize friction losses and improve energy efficiency.

Extended Service Life

Optimized geometry and advanced bearing materials ensure long-lasting performance even under continuous operation.

Excellent Reliability

Designed for critical industrial applications where equipment downtime must be minimized.

Construction and Design

A typical Compact Equalising Thrust Bearing assembly consists of:

• Bearing Housing

• Equalising Pads

• Pivot Mechanism

• Bearing Shoes

• Retaining Ring

• Lubrication Channels

• Mounting Components

The equalising feature allows each bearing pad to automatically adjust its position, ensuring that thrust loads are evenly distributed regardless of minor shaft misalignment or operating variations.

Available Materials

Bearing Pads

Tin-Based Babbitt Alloy

Properties:

• Excellent anti-friction characteristics

• High conformability

• Good embeddability

• Outstanding wear resistance

Applications:

• Turbines

• Pumps

• Compressors

Copper-Based Babbitt Alloy

Properties:

• Higher load capacity

• Superior fatigue resistance

• Excellent thermal conductivity

Applications:

• Heavy-duty industrial machinery

• Marine propulsion systems

Steel Backing Material

Carbon Steel

Properties:

• High structural strength

• Excellent dimensional stability

• Cost-effective solution

Stainless Steel 316

Properties:

• Excellent corrosion resistance

• Suitable for aggressive environments

• Long service life

Applications:

• Wastewater treatment plants

• Chemical processing industries

• Marine equipment

Technical Specifications

Working Principle

When axial forces are generated within rotating machinery, the thrust bearing absorbs these forces and transfers them through the bearing pads.

The equalising system automatically adjusts the position of each pad to achieve balanced load sharing. As a result:

• Axial loads are evenly distributed.

• Bearing temperatures remain lower.

• Wear is reduced.

• Lubrication performance improves.

• Equipment reliability increases.

This design is particularly valuable in applications where load fluctuations frequently occur.

Typical Applications

Industrial Pumps

Compact equalising thrust bearings are commonly used in:

• Centrifugal pumps

• Vertical pumps

• Multistage pumps

• Wastewater pumps

The bearings absorb axial thrust generated by hydraulic forces and maintain shaft stability.

Steam Turbines and Gas Turbines

Used to support rotor thrust loads while ensuring smooth and reliable operation under high-speed conditions.

Industrial Compressors

Protects rotating shafts from excessive axial movement and improves equipment longevity.

Gearboxes

Supports thrust loads generated by helical gears and planetary gear systems.

Wastewater Treatment Equipment

Applied in screening systems, sludge handling equipment, screw conveyors, and pumping stations where reliable operation is essential.

Marine Propulsion Systems

Widely used in marine propulsion shafts and auxiliary equipment operating under continuous load conditions.

Agricultural Machinery

Suitable for heavy-duty agricultural equipment requiring robust thrust load management and long service life.

Quality Assurance

Each Compact Equalising Thrust Bearing undergoes strict quality control procedures including:

• Raw material inspection

• Dimensional verification

• Bearing geometry inspection

• Surface roughness testing

• Dynamic balancing checks

• Load simulation testing

• Final assembly inspection

Manufacturing processes comply with international quality management standards.

Advantages

• Compact installation dimensions

• Uniform load distribution

• Lower operating temperatures

• Reduced maintenance requirements

• Extended bearing life

• High axial load capacity

• Improved machine efficiency

• OEM-quality performance

• Custom design available

• Worldwide application support

Industries Served

• Power Generation

• Water and Wastewater Treatment

• Oil and Gas

• Marine Engineering

• Mining

• Industrial Manufacturing

• Agricultural Machinery

• Chemical Processing

• Pulp and Paper

• Renewable Energy

Conclusion

Compact Equalising Thrust Bearings provide an advanced solution for managing axial loads in industrial rotating equipment. Their self-equalising design, compact structure, and superior load-sharing capabilities make them ideal for demanding applications where reliability, efficiency, and long service life are essential.

Designed for OEM and replacement applications, these bearings help improve machinery performance, reduce maintenance costs, and maximize operational uptime across a wide range of industries.
