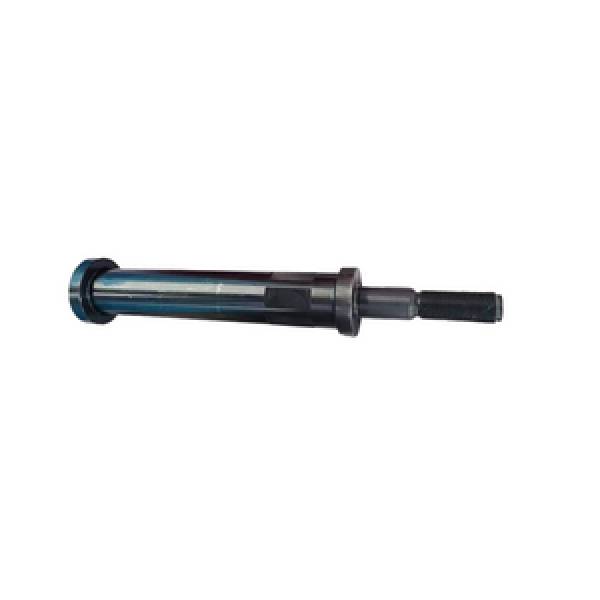

Mud pump piston rod
Mud Pump Piston Rods are precision-engineered replacement components for reciprocating drilling mud pumps. Designed to transmit motion from the power end to the piston assembly, they are manufactured from specified alloy steel and finished to meet the dimensional, strength, and surface requirements of the applicable pump model. Material grade, heat treatment, surface finish, and compatibility are subject to technical verification.
| Application | - Oil and gas drilling operations - Onshore and offshore drilling rigs - Drilling mud circulation systems - Triplex and duplex reciprocating mud pumps - Mud pump maintenance and overhaul - Replacement of worn or damaged piston rods - Drilling equipment refurbishment and spare-parts supply |
|---|
Compatible Models
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Mud Pump Piston Rod |
| Product Type | Drilling Mud Pump Replacement Part |
| Equipment | Reciprocating Drilling Mud Pump |
| Pump Configuration | Triplex or Duplex, subject to model |
| Material | Alloy steel; exact grade to be confirmed |
| Possible Material Grades | 35CrMo, 42CrMo, or other approved grade |
| Manufacturing Process | Forging, heat treatment, and precision machining as specified |
| Surface Treatment | Induction hardening, hard chrome plating, or other approved treatment |
| Overall Length | Model- and drawing-dependent |
| Rod Diameter | Model- and drawing-dependent |
| Connection Type | Threaded, clamped, or other specified connection |
| Thread Specification | To be confirmed against the original drawing |
| Surface Finish | According to approved specification |
| Quality Inspection | Dimensional, material, and surface inspection as agreed |
| Applicable Standard | API 7K where specified and supported by the applicable certification |
| Compatibility | Confirmed by pump model, OEM part number, and dimensions |
| Application | Oil and gas drilling mud circulation systems |
Technical note: These are general product specifications, not a confirmed drawing for a particular model. API compliance or certification should only be claimed when supported by the supplier's applicable documentation.
| Application | - Oil and gas drilling operations - Onshore and offshore drilling rigs - Drilling mud circulation systems - Triplex and duplex reciprocating mud pumps - Mud pump maintenance and overhaul - Replacement of worn or damaged piston rods - Drilling equipment refurbishment and spare-parts supply |
|---|
Compatible Models
This Mud pump piston rod is designed as a direct replacement for the following machine models and series:
Not sure if it fits your machine? Send us your equipment model or original part number — ask an engineer →
Description
Mud Pump Piston Rod
Product Overview
The Mud Pump Piston Rod is a critical connecting component in reciprocating drilling mud pumps used in oil and gas drilling operations. It transfers reciprocating motion from the power end to the fluid-end piston, enabling the pump to circulate drilling fluid through the drilling system.
Operating under repeated mechanical loads, the piston rod requires adequate mechanical strength, dimensional accuracy, and a suitable surface finish. Correct fit between the rod, piston, clamp, and associated sealing components is essential for dependable operation.
Key Features
High-strength alloy steel: Material selected according to the approved pump design and technical specification.
Precision machining: Critical diameters, shoulders, threads, and connecting features manufactured to the specified dimensions.
Surface treatment options: Induction hardening, hard chrome plating, or other specified treatments, depending on the design.
Wear control: Proper surface finish helps reduce friction and wear at compatible sealing and packing interfaces.
Replacement supply: Available for selected triplex and duplex mud pump models, subject to part-number verification.
Inspection support: Dimensional and material checks can be arranged according to the agreed quality requirements.
Typical Applications
Mud Pump Piston Rods are used in drilling mud circulation systems for onshore and offshore drilling rigs. They are typically replaced during scheduled maintenance or when inspection identifies wear, damage, thread deterioration, or dimensional deviation.
Replacement and Ordering Information
To identify the correct piston rod, please provide the mud pump manufacturer, model, OEM part number, drawing, or a sample. The connection type, overall length, shaft diameter, thread dimensions, material, and surface treatment should be confirmed before production.
A piston rod that looks similar to the original is not necessarily interchangeable. Final suitability should be verified against the pump manufacturer's specifications and operating requirements.
Frequently Asked Questions
Need a custom Mud pump piston rod?
Send us your drawing, sample or part number — we'll respond within 24 hours.
