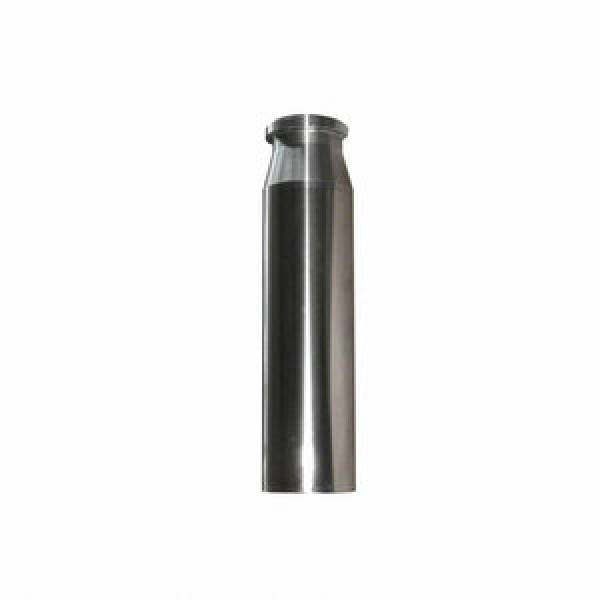

Frac Pump Fluid End Plunger
Frac Pump Fluid End Plungers are precision-engineered replacement components for high-pressure reciprocating fracturing pumps. Available with application-specific wear-resistant surface coatings, including nickel-based alloy, tungsten carbide, and ceramic options, they are designed to work with compatible plunger packing systems in demanding oilfield operations. Dimensions, coating specifications, and pump compatibility are subject to verification.
| Application | - Hydraulic fracturing pump systems - Oil and gas well stimulation - High-pressure fluid pumping - Frac pump maintenance and overhaul - Replacement of worn or damaged pump plungers - Oilfield pumping equipment refurbishment - Applications requiring wear-resistant plunger surfaces |
|---|
Compatible Models
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Frac Pump Fluid End Plunger |
| Product Type | High-Pressure Reciprocating Pump Plunger |
| Equipment | Hydraulic Fracturing Pump |
| Base Material | Subject to approved drawing and supplier specification |
| Surface Coating | Nickel-based alloy, tungsten carbide, ceramic, hard chrome, or other specified option |
| Plunger Diameter | Model-dependent; confirm before ordering |
| Overall Length | Drawing-dependent |
| Surface Hardness | Coating-dependent; confirm by specification |
| Surface Finish | According to approved drawing and sealing requirements |
| Dimensional Tolerance | According to pump model and OEM specification |
| Packing Compatibility | Must match the plunger diameter and packing assembly |
| Working Pressure | Determined by the complete pump configuration |
| Pump Compatibility | Subject to model and part-number verification |
| Quality Inspection | Dimensional inspection and coating verification as agreed |
| Application | Oilfield fracturing and compatible high-pressure pumping systems |
Technical note: Coating options are not interchangeable in every operating condition. Final material, coating thickness, hardness, dimensions, and finish should be confirmed before production.
| Application | - Hydraulic fracturing pump systems - Oil and gas well stimulation - High-pressure fluid pumping - Frac pump maintenance and overhaul - Replacement of worn or damaged pump plungers - Oilfield pumping equipment refurbishment - Applications requiring wear-resistant plunger surfaces |
|---|
Compatible Models
This Frac Pump Fluid End Plunger is designed as a direct replacement for the following machine models and series:
Not sure if it fits your machine? Send us your equipment model or original part number — ask an engineer →
Description
Frac Pump Fluid End Plunger
Product Overview
The Frac Pump Fluid End Plunger is a reciprocating component used in high-pressure fracturing pumps for oilfield applications. It moves within the fluid-end assembly and works with the plunger packing to displace fluid during each pumping cycle.
Because the plunger operates under repeated mechanical loading and continuous contact with the sealing system, surface wear resistance, dimensional accuracy, surface finish, and compatibility with the packing are important factors in service performance.
Key Features
Wear-resistant surface options: Nickel-based alloy, tungsten carbide, ceramic, or other specified coatings, depending on the required application.
Precision-machined dimensions: Diameter, length, tolerances, and surface finish must match the applicable pump design.
Packing-system compatibility: Designed to operate with the correct plunger packing and sealing components.
Replacement supply: Available for selected fracturing pump models, subject to part-number and dimensional verification.
Application-specific selection: Coating type should be selected according to operating pressure, fluid characteristics, abrasion, corrosion exposure, and maintenance requirements.
Surface Coating Options
Nickel-Based Alloy Coating: Commonly used for wear resistance and suitable corrosion performance in specified applications. The exact coating composition and hardness depend on the approved specification.
Tungsten Carbide Coating: Offers high surface hardness and abrasion resistance. Suitability should be evaluated against the operating fluid, counterface, and sealing arrangement.
Ceramic Coating or Ceramic Plunger: May be selected for applications requiring a hard, smooth, wear-resistant working surface. The actual design and material must be confirmed.
Hard Chrome Coating: Available for certain designs where specified. Coating thickness, adhesion, and dimensional limits must comply with the approved drawing and process requirements.
Typical Applications
Frac pump plungers are used in hydraulic fracturing and other compatible oilfield high-pressure pumping operations. Correct selection helps maintain sealing performance and reduce premature wear of the plunger and packing system.
Ordering Information
To identify the correct replacement, please provide the pump manufacturer and model, OEM part number, plunger diameter, overall length, coating type, and any available drawing or sample.
The supplied plunger should be verified against the original specification before installation. Similar dimensions alone do not guarantee correct fit, sealing performance, or operating suitability.
