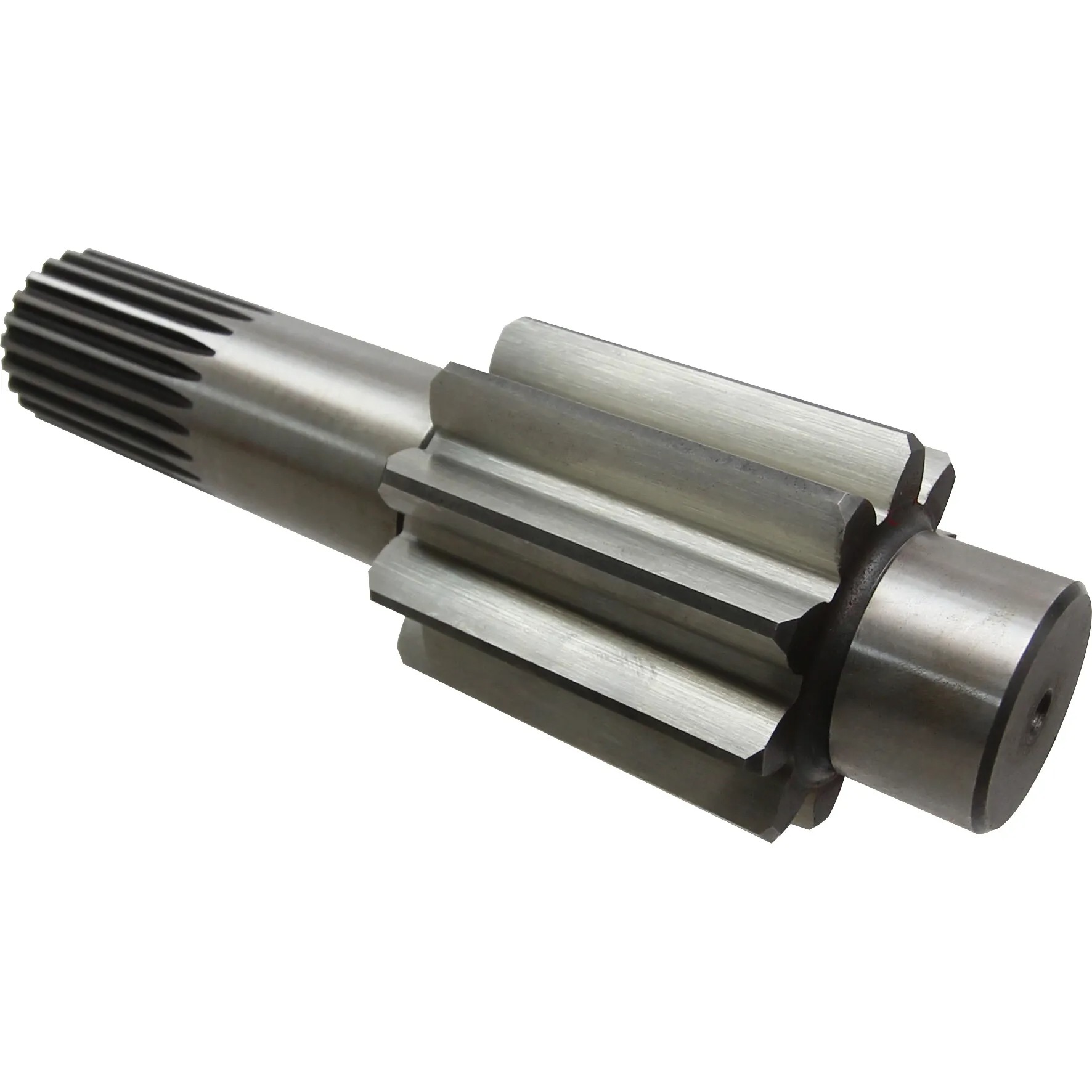

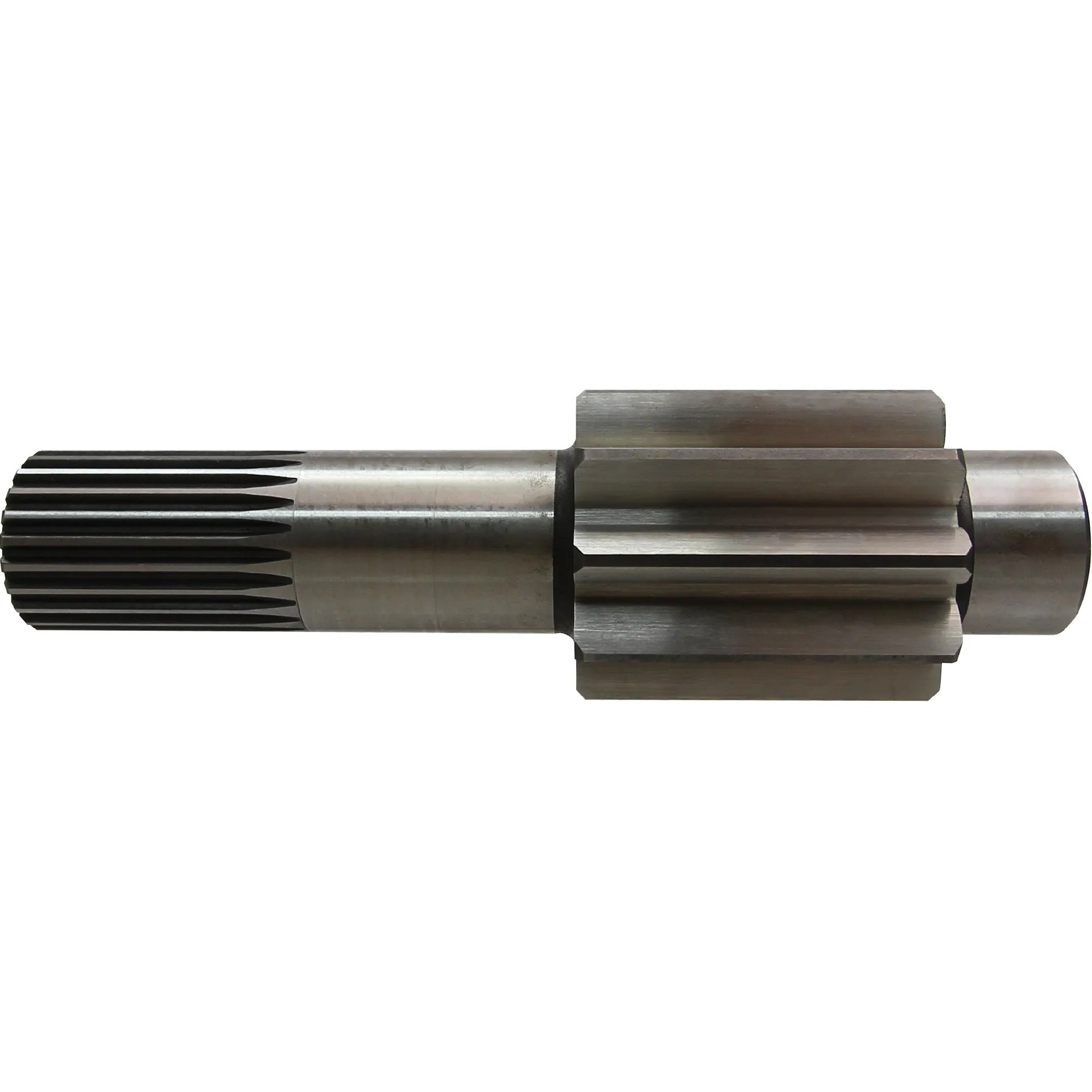

H114203 John Deere Reducing shaft final drive

Reducing shaft final drive H114203 John Deere

fitsJohn Deere® Combines ;- 6600, 6620, 7700, 7720, 882

A spare part for the transmission of the John Deere combine

Destination

To transmit rotary motion to the final drive gear of the combine drive wheel

Used to replace worn or damaged parts during refurbishment.

Properties

A steel part of a complex spatial shape in the form of a shaft with splines and cut teeth to transmit rotational motion. The part is made of special steel and heat treated to ensure maximum hardness and wear resistance.

Parameters

Weight , W kg 2.67

Outside diameter , D mm 65

Number of teeth , Z 10

Number of splines , F 23

Length , L mm 210

Outside diameter , D1 mm 38

Diameter of shaft , Ds mm 38.1

Diameter of shaft , Ds1 mm 38.1

Outer diameter, D2, mm , D2 mm 34

The parameters may differ from the actual ones.

Sales units

Sales unit 1 piece

Quantity in the package 1 piece

Packing dimensions

Height , H mm 85

Width , W mm 85

Length , L mm 275
