John Deere Gear H170781

Reducing shaft for gearbox of John Deere 950/955/960/965/968H/970/975HY4/1055/1065/1068H/1072/1075, 5420/5440 combine harvesters.

Length - 320 Number of teeth - 12 Reference: #Z37946 . Aftermarket spare part.

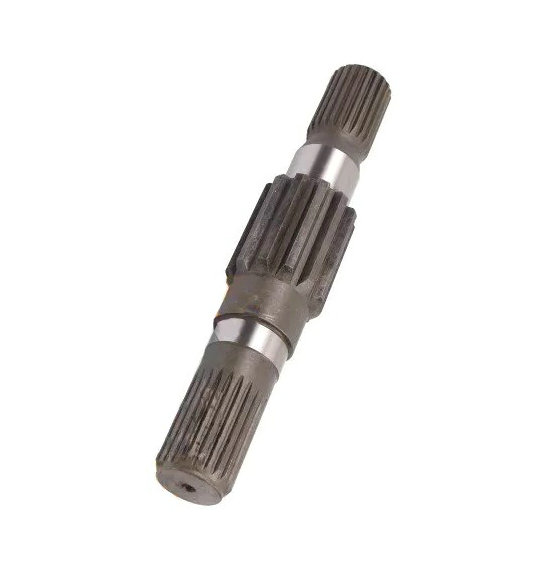

Reducing shaft Z37946 John Deere

Usage  Spare part of combine harvester.

Appointment

Transfer of the rotary motion to the on-board gearbox of the drive wheel of the combine.

Used to replace worn or damaged parts during repair and restoration work.

Properties

Steel detail of a complex spatial shape in the form of a shaft, at the ends of which are made slots and in the central part - teeth. The part is made of special steel, heat-treated for providing maximum durability and wear resistance.

Parameters

Weight , W kg 2.8

Outside diameter , D mm 53

Number of teeth , Z 12

Length , L mm 320

Outside diameter , D1 mm 38

Quantity of slots , F 23

Outer diameter, D2, mm , D2 mm 35

The parameters may differ from the actual ones.

Sales units

Sales unit 1 piece

Quantity in the package 1 piece
