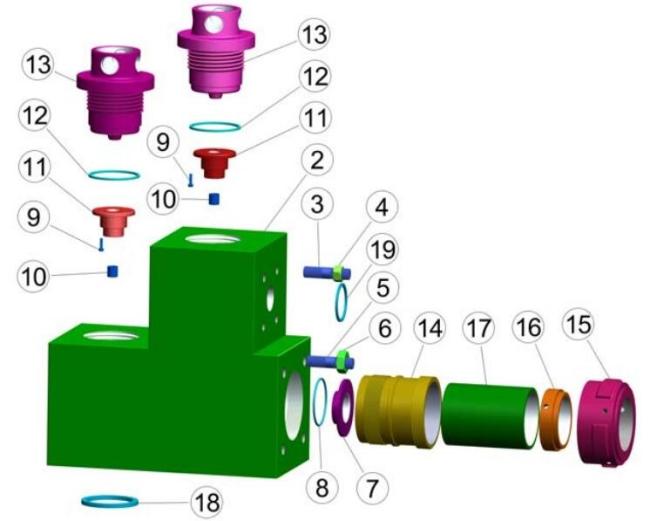

EMSCO FC-2200
| FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP |
| NOV 7500 PSI | FC-2200 | 9” X 15” |
| ITEM | P/ N | DESCRIPTION | QTY. REQ’D |
| FLUID END MODULE COMPLETE ASSEMBLY | 3 | ||
| 1 | 0-6323-0108-00 | DISCHARGE MODULE-STUDDED | 3 |
| 3 | 0-6323-0109-00 | SUCTION MODULE-STUDDED | 3 |
| 4 | 0-6323-0087-00 | THREADED RETAINER | 6 |
| 5 | 0-6323-0086-00 | THREADED RING | 6 |
| 6 | 0-6323-0083-00 | VALVE POT COVER | 6 |
| 7 | 0-6323-0103-00 | VALVE GUIDE W/ BUSHING | 6 |
| 8 | 0-6323-0126-00 | HANDLER, VALVE POT | 3 |
| 9 | 0-6323-0085-00 | SUCTION MANIFOLD | 1 |
| 10 | 0-6316-0105-95 | FLANGE, SUCTION | 2 |
| 11 | 0-6317-0074-95 | FLANGE, BLIND | 2 |
| 12 | 0-6323-0084-10 | DISCHARGE MANIFOLD, 7500 PSI | 1 |
| 13 | 0-6323-0097-00 | WEAR PLATE | 3 |
| 14 | 0-6323-0096-00 | LINER THREAD RING | 6 |
| 15 | 0-6323-0099-00 | LINER LOCK | 3 |
| 16 | 0-6323-0121-20 | FEED PIPING ASSEMBLY | 6 |
| 17 | 0-6323-0093-00 | RETAINER, VALVE GUIDE | 6 |
| 18 | 0-6323-0128-00 | SEAL, F. E. MODULAR | 2 |
| 19 | 0-6323-0127-00 | WEAR PLATE LINER SEAL - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 3 |
| 20 | 0-7602-1600-52 | O-RING (SUCTION MANIFOLD) | 3 |
| 21 | 0-7602-1600-61 | O-RING (SUCTION MANIFOLD TO F. E.) | 3 |
| 22 | 0-7602-1600-30 | O-RING (DISCHARGE MANIFOLD TO F. E.) | 3 |
| 23 | 0-7501-0051-00 | SCREW, RETAINER | 6 |
| 24 | 0-7602-5280-72 | WIRE, SOFT IRON .06 X 144.00 | 6 |
| 25 | 0-7601-0331-39 | SCREW, HEX HD 1" - 8 X 5.00 | 72 |
| 26 | 0-7601-0630-20 | NUT, HEX 1" - 8 | 24 |
| 27 | 0-7601-0333-30 | SCREW, HEX HD 7/8-9 X 2.50 GR 5 | 48 |
All our fluid end parts are manufactured to API 7K quality standards.
Parts are available for these popular pump models:
BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32
WEATHERFORD/Ellis Williams: E-447, E-2200
Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800
Romania: 3PN-1000, 3PN-1600, 3PN-2000
And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.
Baoji Oilfield Machinery Co., Ltd. (BOMCO) is a leading research & development manufacturing enterprise, affiliated to China National Petroleum Corporation (CNPC), for oil drilling and production equipments, land drilling rigs, F-series mud pumps, multi-purpose wirelines and drilling rig power control system.
The principal products of BOMCO also include F-series mud pump ranging from 500 HP to 3,000HP, well control and well head equipments, special vehicles, steep pipe, wireline, large size roller bit, power control system, and non-conventional oil and gas equipments.
OEM Style Modules Mission L Modules
Brewster B-1000-T/B-1100-T Mission L Brewster B-1300-T/B-1600-T
Brewster B-1300-T/B-1600-T Mission L Emsco F-800, F-1000
Ellis Williams 9-W-1000 Mission L Emsco FB-1300/FB-1600
Emsco F-350/F-500/F-650 Mission L Gardner Denver PZ-7
Emsco F-800/F-1000 Mission L Gardner Denver PZ-8
Emsco FB-1300/FB-1600 Mission L Gardner Denver PZ-9
Emsco FC-1600 Mission L Gardner Denver PZ-10/PZ-11
Emsco FC-2200 Mission L Ideco T-1300/T-1600
Gardner Denver PAH Mission L National 9-P-100
Gardner Denver TEE Mission L National 10-P-130
Gardner Denver PX-11(2000 HP) 7500 psi Mission L National 12-P-160
Gardner Denver PZ-7/PZ-8/PZ-9 Mission L National 12-P-160 "New Style"
Gardner Denver PZ-7/PZ-8/PZ-9 w/ Wear Plate Mission L Oilwell A-850-PT/A-1100-PT
Gardner Denver PZ-10/PZ-11 Mission L Oilwell A-1400-PT/A-1700-PT
Gardner Denver PZ-10/PZ-11 w/ Wear Plate Mission L Wirth TPK-1300/TPK-1600
Ideco T-500
Ideco T-800/T-1000
Ideco T-1300/T-1600 Mission "L" 7500 PSI Asemblies
National 7-P-50 Mission L National 12-P-160 (7500 PSI Working Pressure)
National 8-P-80 Tapr-Lok Mission L National 14-P-220 (7500 PSI Working Pressure)
National 8-P-80 Fast Change Mission L Oilwell A/HD-1700-PT 7500 PSI Working Pressure
National 9-P-100 Tapr-Lok
National 9-P-100 Fast Change
National 10-P-130 Tapr-Lok
National 10-P-130 Fast Change
National 12-P-160 Tapr-Lok
National 12-P-160 Fast Change
National 12-P-160 7500 PSI
National 14-P-220
Oilwell A-850/1100/1400/1700-PT

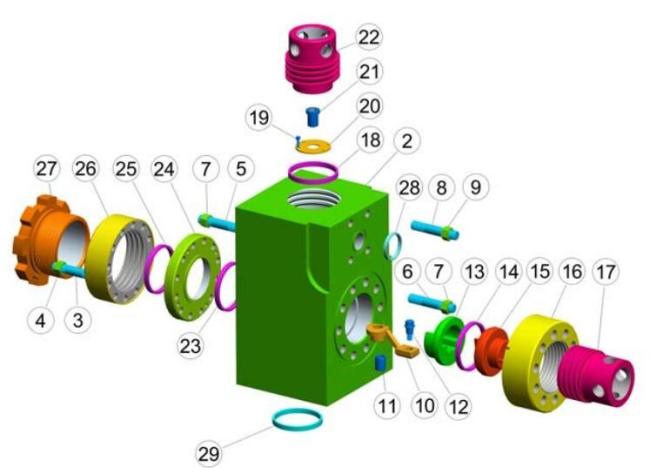

| GARDNER DENVER PZ-10, PZ-11 | |||
| FLUID END MODULE & ACCESSORIES | |||
| ITEM | PART NUMBER | DESCRIPTION | QTY/PUMP |
| FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEM 2-13, 15, 20-23) | 3 | ||
| 1 | TS-202PZL029B | FLUID END MODULE STUDDED (INCLUDES ITEM 2-9) | 3 |
| 2 | TS-202-6651-20 | FLUID END MODULE ONLY | 3 |
| 3 | TS-201PZL110 | STUD, FRAME & LINER CLAMP LONG | 24 |
| 4 | TS-205PZL110 | STUD, SHORT | 24 |
| 5 | TS-50B36 | NUT, FRAME & LINER CLAMP STUD | 72 |
| 6 | TS-204PZL110 | STUD | 72 |
| 7 | TS-50B34 | NUT (FOR ABOVE) | 72 |
| 8 | TS-202PZL110 | STUD, DISCHARGE MANIFOLD | 12 |
| 9 | TS-50B34 | NUT (FOR ABOVE STUD) (SAME AS ITEM 6) | 12 |
| 10 | TS-200PL387 | RING, VALVE COVER THREADED | 6 |
| 11 | TS-204PZL715 | GASKET, VALVE COVER (G-798Z) | 6 |
| 12 | TS-2007674 | BUSHING, VALVE GUIDE | 6 |
| 13 | TS-200PZL147 | COVER, VALVE | 6 |
| 14 | TS-25AL37 | LINER GASKET (G-692) | 3 |
| 15 | TS-200PZL587 | CAP, VALVE COVER LOCK | 6 |
| 16 | TS-2011701 | PLATE, RETAINER | 3 |
| 17 | TS-200PZL483 | GUIDE, VALVE SUCTION | 3 |
| 18 | TS-95W2 | WASHER, LOCK 1/2" 316SS | 6 |
| 19 | TS-655EE065 | SCREW 1/2" x 1-3/4" 316SS HX HD C/S | 6 |
| 20 | TS-25AL35 | GASKET, DISCHARGE MANIFOLD | 3 |
| 21 | TS-25G41 | GASKET, SUCTION MANIFOLD | 3 |
| 22 | TS-200PZL455 | CLAMP, LINER | 3 |
| 23 | TS-200PZL483A | ASSEMBLY, LOWER VALVE GUIDE (INCLUDES ITEM 16,17,18,19) | 3 |
| 24 | TMPZ09-STUDSSET | PZ-10/11 STUDS AND NUTS SET (INCLUDES 8 PCS TS-201PZL110, 8 PCS TS-205PZL110, 24 PCS TS-50B36, 24 PCS TS-204PZL110, 28 PCS TS-50B34, 4 PCS TS-202PZL110) | 3 |
| 25 | TMPZ09-SEALKIT | PZ-10/11 MODULE SEAL KIT (INCLUDES TWO G-798Z, ONE TS-25AL35, ONE TS-25G41) | 3 |
| MISSION "L" MODULE FOR BOMCO F1600 7500 PSI SWOP VERSION | QTY PER PUMP | |||
| FLUID END MODULE & ACCESSORIES | ||||
| ITEM # | SW PART # | MISSION PART # | DESCRIPTION | |
| 8404-25A | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS) | 3 | ||
| 1 | 8404-26 | MODULE, SUCTION STUDDED (INCLUDES ITEMS 1, 7-8) | 3 | |
| 2 | 8404-27 | MODULE, DISCHARGE STUDDED (INCLUDES ITEMS 2-9) | 3 | |
| 3 | 4019-61 | STUD, DISCHARGE TO SUCTION MODULE | 18 | |
| 4 | 1-3/4-8 HH | 6300281 | NUT, DISCHARGE TO SUCTION STUD | 18 |
| 5 | 4017-33 | STUD, POWER END | 30 | |
| 6 | 1-1/2-8 HH | 0-7601-0630-28 | NUT, POWER END STUD | 30 |
| 7 | Feb-15 | OWA17TRSSW | STUD, THREADED RING | 72 |
| 8 | 1-1/4-7 HH | 6300200 | NUT, THREADED RING STUD | 72 |
| 9 | 8488/5/1- | 6511416 | PIN, DOWELL | 6 |
| 10 | 4019-51 | 7006444 | CAPSCREW, LINER RETAINER FLANGE 3/4-10X3 | 18 |
| 11 | 8490-28 | PLATE, LINER WEAR | 3 | |
| 12 | 2988 | 1290344 | GASKET, WEAR PLATE AND MODULE - RUBBER (SEE DATASHEET FOR ALT MATLS) | 6 |
| 13 | 568-443 | 99609443 | O-RING, WEAR PLATE | 3 |
| 14 | 6490-25 | FLANGE, LINER RETAINER (LINER BUSHING) | 3 | |
| 15 | 6590-25 | NUT, LINER RETAINER | 3 | |
| 16 | 4690-25A | ASSY, VALVE COVER PLUG (INCLUDES ITEMS 15,16, 20-22) | 6 | |
| 17 | PLUG, VALVE COVER | 6 | ||
| 18 | 4488-25 | RING, THREADED (THREADED FLANGE) | 6 | |
| 19 | 4588-25 | CAP, THREADED (SCREW GLAND) | 6 | |
| 20 | P-115 | 7207115 | SEAL, VALVE COVER PLUG - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 |
| 21 | 4788R-25 | ASSEMBLY, VALVE GUIDE (INCLUDES ITEMS 20 & 21) | 6 | |
| 22 | 4700I | *20200004 | BUSHING, VALVE GUIDE (BUNA) | 6 |
| 23 | 4018-18 | 700030711 | SCREW, VALVE GUIDE | 12 |
| 24 | 4018-19 | 700048511 | CAPSCREW, SUCTION MANIFOLD | 24 |
| 25 | 568-442 | 99609442 | GASKET, SUCTION MANIFOLD | 3 |
| 26 | 8376-25MOD | MANIFOLD, DISCHARGE | 1 | |
| 27 | 2988 | 1290344 | SEAL, DISCHARGE MANIFOLD | 3 |
| 28 | 8590/6/1- | SUCTION MANIFOLD | 1 | |

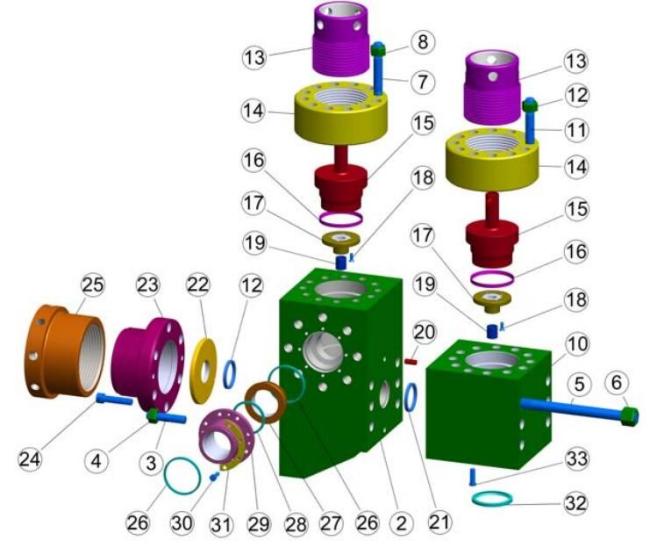

| NATIONAL 9-P-100 | |||
| FLUID END MODULE & ACCESSORIES | |||
| ITEM | PART NUMBER | DESCRIPTION | QTY/PUMP |
| FLUID END MODULE COMPLETE ASSEMBLY | 3 | ||
| 1 | TS-1293240 | MODULE, STUDDED FLUID END DISCHARGE (INCLUDES ITEM 2-10) | 3 |
| 2 | TS-1293241 | DISCHARGE MODULE ONLY | 3 |
| 3 | TS-6300200 | NUT, POWER FRAME STUD | 24 |
| 4 | TS-2408030 | STUD, POWER FRAME | 24 |
| 5 | TS-6300160 | NUT, LINER BUSHING STUD | 18 |
| 6 | TS-2408018 | STUD, LINER BUSHING | 18 |
| 7 | TS-6300241 | NUT, DISCHARGE TO SUCTION MODULE STUD | 18 |
| 8 | TS-2408034 | STUD, DISCHARGE MODULE TO SUCTION MODULE | 18 |
| 9 | TS-6300220 | NUT, THREADED RING STUD | 36 |
| 10 | TS-2408019 | STUD, THREADED RING | 36 |
| 11 | TS-1290338 | MODULE, STUDDED FLUID END SUCTION (INCLUDES ITEM 12-14) | 3 |
| 12 | TS-1290339 | SUCTION MODULE ONLY | 3 |
| 13 | TS-6300220 | NUT, THREADED RING STUD | 36 |
| 14 | TS-2408019 | STUD, THREADED RING | 36 |
| 15 | TS-1293165 | BUSHING, LINER (SAME AS 8-P-80 & 10-P-130) | 3 |
| 16 | TS-1290174 | RETAINER, SEAL | 6 |
| 17 | TS-1290307 | CAP, VALVE COVER (THREADED) | 6 |
| 18 | TS-1290178 | SCREW, ADJUSTING WEDGE | 6 |
| 19 | TS-6300160 | NUT, WEDGE ADJUSTING SCREW | 6 |
| 20 | TS-1290315 | WASHER, WEDGE ADJUSTING SCREW | 6 |
| 21 | TS-1290308 | RING, THREADED | 6 |
| 22 | TS-G-1290376 | ASSEMBLY, WEDGE (INCLUDES ITEM 18) | 6 |
| 23 | TS-1540126 | GASKET, VALVE COVER | 6 |
| 24 | TS-1292140 | RETAINER, VALVE GUIDE BUSHING | 6 |
| 25 | TS-1292141 | BUSHING, VALVE GUIDE | 6 |
| 26 | TS-6511416 | PIN, DOWELL | 6 |
| 27 | TS-1290357 | PLATE, WEAR | 3 |
| 28 | TS-1290342 | CONNECTOR, DISCHARGE | 2 |
| 29 | TS-700030511 | CAPSCREW, DISCHARGE CONNECTOR (WASHER INCLUDED) | 6 |
| 30 | TS-7619050 | WASHER, LOCK 1/2" | 6 |
| 31 | TS-1290343 | ADAPTER, DISCHARGE CONNECTOR | 2 |
| 32 | TS-2410031348 | SEAL, DISCHARGE CONNECTOR TO DISCHARGE ADAPTER | 2 |
| 33 | TS-2410031427 | SEAL, DISCHARGE CONNECTOR & DISCHARGE ADAPTER | 4 |
| 34 | TS-1293166 | ASSEMBLY, LINER CLAMP (INCLUDES ITEM 32,33,34,35,36,37) | 3 |
| 35 | TS-7000448-11 | CAPSCREW, LINER CLAMP | 6 |
| 36 | TS-6309120 | NUT, 3/4" LOCK TYPE | 6 |
| Item | Description | Part No. |
| Complete Assembly | 8490-2A | |
| 1 | Threaded Flange | 4475 |
| 2 | Liner Wear Plate | 8490-3 |
| 3 | Module and Wear Plate Gasket | 2988 |
| 4 | Screw Gland | 4575 |
| 5 | Plug Assembly w/Guide & Bushing | 4675-2A |
| 6 | Plug Seal | P-129 |
| 7 | Valve Guide | 4775-2 |
| 8 | Valve Guide Bushing | 4700-I |
| 9 | Valve Guide Stud w/Nut | 4016-99 |
| 10 | Valve Cover Stud w/Nut | 4015-2 |
| 11 | Power End Stud w/Nut | 4016-9 |
| 12 | Liner Retainer Capscrew | 4017-36 |
| 13 | Liner Retainer Flange | 6490-3 |
| 14 | Liner Retainer Pilot Ring | 8422-3 |
| 15 | Liner Retainer Nut | 6590-1 |
| 16 | Suction Module Stud w/Nut | 4016-97 |
| 17 | Suction Module Studded | 8490-2 |
| 18 | Discharge Module Studded | 8490-1 |
| 19 | Dowel Pin | 8488-5 |
| 20 | Discharge Manifold Stud w/Nut | 4017-46 |
| NATIONAL FB1300/1600(SW) | |||
| FLUID END MODULE & ACCESSORIES | |||
| ITEM | PART NUMBER | DESCRIPTION | QTY/PUMP |
| FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEM 1-27) | 3 | ||
| 1 | TS-84901D | MODULE, STUDDED DISCHARGE (INCLUDES ITEMS 1, 3-10, 11) | 3 |
| 2 | TS-84902S | MODULE, STUDDED SUCTION (INCLUDES ITEMS 2, 12, 13) | 3 |
| 3 | TS-4016-97 | STUD, DISCHARGE MODULE TO SUCTION MODULE | 18 |
| 4 | TS-0-7601-0630-17 | NUT, DISCHARGE TO SUCTION MODULE STUD | 18 |
| 5 | TS-4015-2 | STUD, THREADED RING | 36 |
| 6 | TS-6300200 | NUT, THREADED RING STUD | 36 |
| 7 | TS-4016-9 | STUD, POWER FRAME | 18 |
| 8 | TS-0-7601-0630-17 | NUT, POWER FRAME STUD | 18 |
| 9 | TS-4017-46 | STUD, DISCHARGE MANIFOLD | 12 |
| 10 | TS-0-7601-0630-24 | NUT, DISCHARGE MANIFOLD STUD | 12 |
| 11 | TS-4017-36 | CAPSCREW, LINER RETAINER FLANGE (SOCKET HEAD) | 24 |
| 12 | TS-4015-2 | STUD, THREADED RING | 36 |
| 13 | TS-6300200 | NUT, THREADED RING STUD | 36 |
| 14 | TS-8488-5 | PIN, DOWELL | 6 |
| 15 | TS-2988 | SEAL, SUC TO DISCH MOD & WEAR PLATE - RUBBER (SEE DATASHEET FOR ALT MATLS) | 6 |
| 16 | TS-8422-3 | RING, LINER RETAINER PILOT | 3 |
| 17 | TS-8490-3 | PLATE, LINER WEAR | 3 |
| 18 | TS-6490-3 | FLANGE, LINER RETAINER | 3 |
| 19 | TS-6590-1 | NUT, LINER LOCK | 3 |
| 20 | TS-P-129 | GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 |
| 21 | TS-4016-99 | STUD,VALVE GUIDE | 12 |
| 22 | NUT,STUD VALVE GUIDE | 12 | |
| 23 | TS-4700-I | BUSHING, VALVE GUIDE | 6 |
| 24 | TS-4775-2R | GUIDE, VALVE (INCLUDES ITEM 20) | 6 |
| 25 | TS-4675-2A | PLUG, VALVE COVER | 6 |
| 26 | TS-4475 | RING, THREADED | 6 |
| 27 | TS-4575 | CAP, VALVE COVER (THREADED) | 6 |
Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036

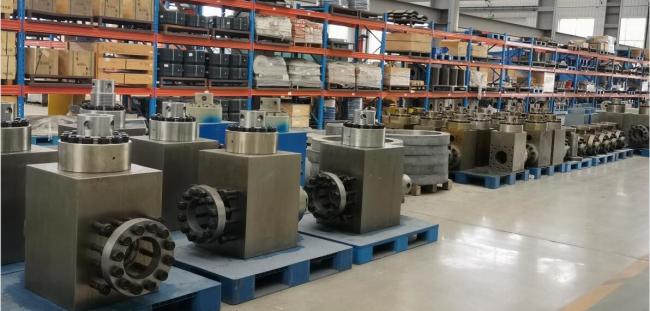

Fluid End Modules
National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®
Pulsation Dampener
Hydril Type "K" Pulsation Dampener

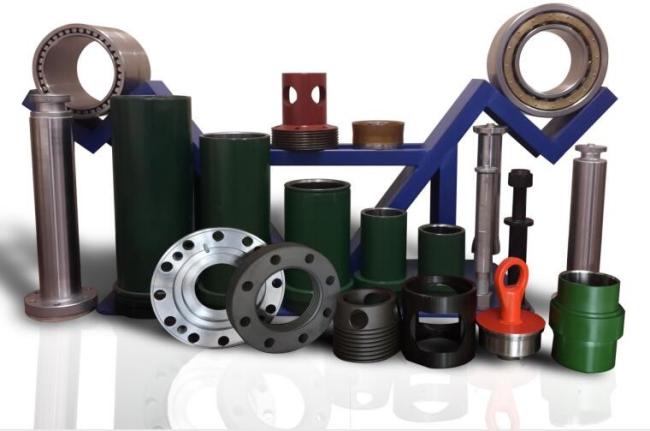

Popular Mud Pump Spare Parts
Mud Pump Manufactures and Models include:
Brewster Mud Pumps
B-550 | B-750 | B-1000 | 1100T | B-1300
Continental Emsco Mud Pumps
FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD
Continental Emsco Mud Pumps
GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH
Continental Emsco Mud Pumps
PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL
Ellis Williams (Luko) Mud Pumps
WW-440 | 14W-400 | 15W-600 | 9W-1000
Gaso Mud Pump
1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652
Gardner Denver Mud Pumps
FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL
Ideco Mud Pumps
MM-200 | MM-300 | MM-500 | MM-500F | MM-550
Ideco Mud Pumps
MM-550F | MM-700 | MM-700F | T-500
Ideco Mud Pumps
T-800 | T-1000 | T-1300 | T-1600
National Mud Pumps
C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000
National Mud Pumps
K-280 | K-380 | K-500 | K-500A | K-700A
National Mud Pumps
7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160
Oilwell Mud Pumps
6P-HD | 610-P | 212-P | 214-P | 218-P
Oilwell Mud Pumps
350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT
Oilwell Mud Pumps
A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT
OPI Mud Pumps
350-D | 700-HDL | 1000-HDL
Wheatley Mud Pumps
1036 | 6070 | 7024 | 7036
Wilson Mud Pumps
600 | 900
| MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 | |||
| FLUID END MODULE & ACCESSORIES | |||
| ITEM # | OEM PART # | MISSION PART # | |
| FEM12PASSYSWNS | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS: 1-23) | ||
| 1 | 8476-6S | FEM12PSUCSWNS | MODULE, SUCTION STUDDED (INCLUDES ITEMS: 1,13,14,& 22) |
| 2 | 8476-5D | FEM12PDISSWNS | MODULE, DISCHARGE STUDDED - (INCLUDES ITEMS: 2,3,4,5,6,7,8,13 & 14) |
| 3 | 4018-17 | 12P160DSUCS | STUD, DISCHARGE TO SUCTION MODULE |
| 4 | PEP55 | NUT, DISCHARGE TO SUCTION STUD | |
| 5 | 4015-95 | NAT12P160PFS | STUD, POWER END |
| 6 | 8P80TRSN | NUT, POWER END STUD | |
| 7 | 8488-5 | PEP70 | PIN, DOWELL |
| 8 | 4017-65 | PEP75 | CAPSCREW,LINER RETAINER SOCKET HEAD |
| 9 | 8476-3 | PP6021260SW | PLATE, LINER WEAR |
| 10 | 2988 | 1290344 | GASKET, WEAR PLATE AND MODULE - RUBBER (SEE DATASHEET FOR ALT MATLS) |
| 11 | 6476 | 12PLASW | FLANGE, LINER RETAINER (LINER BUSHING) |
| 12 | 6576 | 12PLANSW | NUT, LINER RETAINER |
| 13 | 4015-54 | 12PTRSSW | STUD, THREADED RING |
| 14 | 12P160TRSN | NUT, THREADED RING STUD | |
| 15 | 4676-6A | 12PVCASSYSWNS | PLUG, VALVE COVER (INCLUDES ITEMS 15,19,20,& 21) |
| 16 | 4476 | 12PFLGSW | RING, THREADED (THREADED FLANGE) |
| 17 | 4597 | 12PCAPSW | CAP, THREADED (SCREW GLAND) |
| 18 | P-119 | 07207119 | SEAL, VALVE COVER PLUG - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) |
| 19 | 4776R | 12PVGASWNS | ASSEMBLY, VALVE GUIDE(INCLUDES ITEMS 19,& 20) |
| 20 | 4700-I | PZ789VGI | BUSHING, VALVE GUIDE |
| 21 | 4016-98 | PEP73 | SCREW, VALVE GUIDE |
| 22 | 4018-19 | 700048511 | CAPSCREW, SUCTION MANIFOLD |
| 23 | AJO-419R | 1540851 | GASKET, SUCTION MANIFOLD |
| 24 | 8376-2 | NAT12PDSMA | ADAPTER, DISCHARGE |
| 25 | 2976-2 | 2410031437 | SEAL, DISCHARGE ADAPTER |
| 26 | 8376-1 | NAT12PDSMC | CONNECTOR, DISCHARGE |
| 27 | 2976-1 | 2410031433 | SEAL, DISCHARGE CONNECTOR TO DISCHARGE ADAPTER |
| 28 | 4018-18 | 700030711 | CAPSCREW, DISCHARGE CONNECTOR (W /LOCKWASHER) |
| 29 | 8376-3 | 1292175 | RING, BACKUP (DISCHARGE CONNECTOR) |
| 30 | 4018-39 | 7006685 | CAPSCREW, SOCKET HEAD 1 1/2" X 3" |
Contact:Mr Liu
Mobile:15869109368
Tel:86-571-89967020
E-mail:info@dawopu.com
Address:No151 ,ZiDingXiang Rd, Hangzhou. Zhejiang Province, China
