LEWCO-W2215 Cameron Mud Pump
Item	Part Number	Description	Qty.	Unit
1	ES331	LINER WASH PUMP PACKING	18	Ea
2	EG199	API ring gasket (BX-169SS)	27	Ea
3	EG197	API ring gasket (BX-152SS)	3	Ea
4	EG163	suction manifold gasket	15	Ea
5	B105281	suction dampener/desurger	3	Ea
6	108-0609	stroke counter	12	Ea
7	108-1054	heat exchanger-liner wash	3	Ea
8	108-1055	heat exchanger-lube oil	3	Ea
9	108-0764	low presure switch	3	Ea
10	ES452	low presure switch	3	Ea
11	108-1324	low presure switch	3	Ea
12	108-1225	v-belt	6	Ea
13	EG195	mud pressure gauge	3	Ea
14	EG170	crank case cover gasket	888	inch
15	A162209	inspection cover gasket	3	Ea
16	A164103	main bearing cover gasket	6	Ea
17	C164404	cross head cover gasket	6	Ea
18	A164185	inspection cover gasket (large)	3	Ea
19	108-1095	breather cap	3	Ea
20	A164191	stroke counter bracket gasket	3	Ea
21	B164202	eccentric bearing	9	Ea
22	EB119	main (spherical roller) bearing	6	Ea
23	B164206	main bearing shim set	6	Ea
24	A167244	eccentric bearing shims	6	Ea
25	EB120	pinion (cylinderical roller) bearing	6	Ea
26	ES194	oil seal	6	Ea
27	A164505	pinion bearing carrier gasket	6	Ea
28	B164402	wrist pin bearing	6	Ea
29	C164323	piston rod clamp	18	Ea
30	B164407	baffle disc	9	Ea
31	A164453	crosshead shim set	9	Ea
32	B164425	diaphragm plate gasket	9	Ea
33	ES211	stuffing box seal	36	Ea
34	A164415	stuffing box gasket	9	Ea
35	E0175	o-ring ( 2/343)	9	Ea
36	E0301	o-ring ( 2/442)	9	Ea
37	A164705	valve cover seal	18	Ea
38	A167708	valve guide bushing	36	Ea
39	A167702	wear plate seal	18	Ea
40	816406	wear plate seal	9	Ea
41	EV116	valve spring	36	Ea
42	EV190	valve seat	36	Ea
43	EV178	valve	36	Ea
44	EL238	liner (5")	36	Ea
45	EL220	liner (5 1/2")	36	Ea
46	EL221	liner (6")	36	Ea
47	EL222	liner (6 1/2")	36	Ea
48	EL223	liner (7")	36	Ea
49	EL224	liner (7 1/2")	36	Ea
50	EL240	liner (8")	36	Ea
51	EP159	piston (5")	36	Ea
52	EP160	piston (5 1/2")	36	Ea
53	EP117	piston (6")	36	Ea
54	EP118	piston (6 1/2")	36	Ea
55	EP150	piston (7")	36	Ea
56	EP151	piston (7 1/2")	36	Ea
57	EP152	piston (8")	36	Ea
58	EP165	piston (5")	36	Ea
59	EP114	piston rubber(5 1/2")	36	Ea
60	EP115	piston rubber (6")	36	Ea
61	EP116	piston rubber (6 1/2")	36	Ea
62	EP147	piston rubber (7")	36	Ea
63	EP148	piston rubber(7 1/2")	36	Ea
64	EP149	piston rubber (8")	12	Ea
65	EG132	liner gasket (5")	36	Ea
66	EG138	liner gasket (5 1/2")	12	Ea
67	EG139	liner gasket(6")	36	Ea
68	EG140	liner gasket(6 1/2")	36	Ea
69	EG136	liner gasket(7")	36	Ea
70	EG142	liner gasket (7 1/2")	36	Ea
71	EG144	liner gasket (8")	12	Ea
72	EP194	lube oil pump	3	Ea
73	108-0054	relief valve, 15 psi	3	Ea
74	108-1088	relief valve, 65 psi	3	Ea
75	108-0135	check valve	3	Ea
76	108-1257	flow switch	6	Ea
77	EG105	pressure gauge, 0-60 psi	6	Ea
78	EG145	pressure gauge	6	Ea
79	EV215	charging valve	6	Ea
80	ES175	stud 2.25 8UN 8.50 B7	36	Ea
81	EM132	heavy hex nut 8UN A194-2H	36	Ea
82	002-1666	hex bolt 1.000 8NC 2.00 G8	3	Ea
83	002-1544	lock washer 1.000"	3	Ea
84	108-0620	stabilizer plate L-2010	3	Ea
85	108-0619	stabilizer L-20	3	Ea
86	EN137	havy hex nut 1.125 7NC A194-2H	24	Ea
87	EC181	bottom flange cap screw	24	Ea
88	108-0656	seal 429 BUNA 70	3	Ea
89	ES174	stud 1.125 7NC 6.5 B7	24	Ea
90	EO190	charging valve o-ring	6	Ea
91	108-0065	ring gasket BX-155S	3	Ea
92	B310066	charging valve hose assembly	3	Ea
93	108-0618	buna-N bladder ( standard)	6	Ea
94	108-1194	hydrogenated nitrile bladder (high temperature mud)	6	Ea
95	108-1195	Urthane bladder ( oil based mud)	6	Ea

NATIONAL

12-P- 160

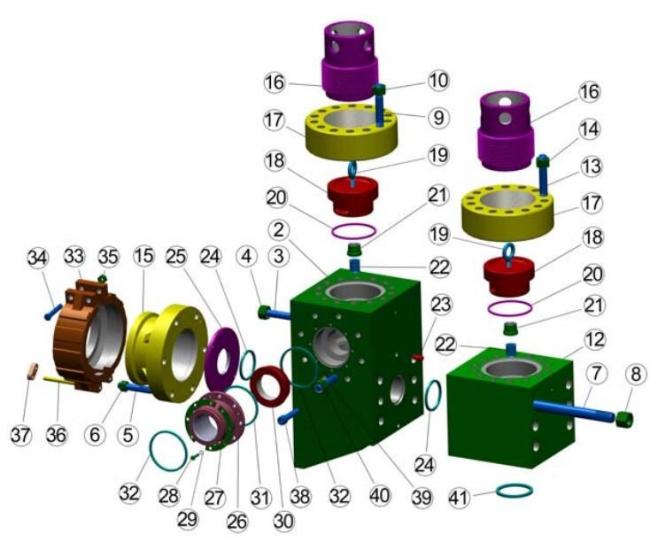

Item	P Part Number	Description	Qty per Pump
1	P-1292240	Discharge Module Studded, (incl. Items 2-10)	3
2	P-1292241	Discharge Module, Only	3
3	P-6300220	Nut, 1 3/8“ Hvy. Hex	24
4	P-2408029	Stud, 1 3/8“ X 6 3/4”, Discharge to Frame	24
5	P-6300180	Nut, 1 1/8“ Hvy. Hex	18
6	P-2408028	Stud, 1 1/8“ X 6 3/8”, Discharge to Liner Bushing	18
7	P-6300281	Nut, 1 3/4“ Hvy. Hex	18
8	P-2408033	Stud, 1 3/4“ X 21 1/8”, Discharge to Suction	18
9	P-6300240	Nut, 1 1/2 Hvy. Hex	36
10	P-2408027	Stud, 1 1/2“ X 7 7/8” Top, Thread Ring	36
11	P-1292243	Suction Module Studded, (incl. Items 12-14)	3
12	P-1292244	Suction Module, Only	3
13	P-6300240	Nut, 1 1/2 Hvy. Hex	36
14	P-2408027	Stud, 1 1/2“ X 7 7/8” Top, Thread Ring	36
15	P-1293165	Bushing, Liner	3
16	P-1292174	Seal Retainer	6
17	P-1292172	Valve Cover	6
18	P-1292178	Screw, Wedge Adjusting	6
19	P-6300182	Nut, Wedge Adjusting	6
20	P-1292171	Washer, Wedge Adjusting Screw	6
21	P-1292176	Ring, Threaded	6
22	P-G-1292268	Wedge Assembly	6
23	P-1540127	Gasket, Valve Cover	6
24	P-1292140	Holder, Valve Guide Insert	6
25	P-1292141	Insert, Valve Guide	6
26	P-6511416	Pin Dowell	6
27	P-1292266	Plate, Wear	3
28	P-1292252	Connector, Discharge	2
29	P-7000-305-11	Screw Hex Head	16
30	P-7619050	Washer, Lock	16
31	P-1292253	Adapter, Discharge Connector	2
32	P-2410031-433	Packing, Rectangular	2
33	P-2410031-437	Packing, Rectangular	4
34	P-1292167	Clamp, Liner	3
35	P-7000491-10	Screw 7/8 X 4 1/2“ Hex Hd. w/ Lock Washer	6
36	P-6309140	Nut, 7/8“ Lock Type	6
37	P-1292169	Pin, Liner Clamp	3
38	P-1292168	Connector, Liner Clamp	3
39	P-2408015	Stud 1 1/2“ x 7 1/2”	16
40	P-6300240	Nut, 1 1/2“ Hvy. Hex	16

NATIONAL

7-P- 50

Item	P Part Number	Description	Qty per Pump
1	P-1291250	Discharge Module Studded, (incl. Items 2-10)	3
2	P-1291251	Discharge Module, Only	3
3	P-6300160	Nut, 1“ Hvy. Hex	24
4	P-2408042	Stud, 1“ X 5”, Top Taper Lock	24
5	P-2408042	Stud, 1/4“ X 4 1/2”, Discharge to Liner Bushing	18
6	P-240803	Nut, 1“ Hvy. Hex	18
7	P-2408041	Stud, 1 1/4“ X 14 5/8”, Discharge to Suction	18
8	P-1294156	Suction Module Studded, (incl. Items 12-14)	3
9	P-1294156	Suction Module, Only	3
10	P-1294165	Bushing, Liner	3
11	P-1290174	Seal Retainer	6
12	P-1294172	Valve Cover	6
13	P-1290178	Screw, Wedge Adjusting	6
15	P-1290315	Washer, Wedge Adjusting Screw	6
16	P-1560701	Spring Wedge	6
17	P-G-1290376	Wedge Assembly	6
18	P-1540126	Gasket, Valve Cover	6
19	P-1292140	Holder, Valve Guide Insert	6
20	P-1292141	Insert, Valve Guide	6
21	P-6511416	Pin 7/8 X 2 Dowell	6
22	P-1294160	Plate, Wear	3
23	P-1294170	Connector, Discharge	2
24	P-7000305-11	Screw 1/2 X 1 1/2 Hex Head	16
25	P-7619050	Washer, Lock 1/2“	16
26	P-1294171	Adapter, Discharge Connector	2
27	P-2410031-348	Packing, Rectangular	2
28	P-2410031-427	Packing, Rectangular	4
29	P-1291166	Clamp, Liner	3
30	P-7000403-10	Screw 5/8 X 3 1/2 Hex Hd. w/ Lock Washer	6
31	P-6309100	Nut, 5/8“ Lock Type	6
32	P-12911-69	Pin, Liner Clamp	3
33	P-12911-68	Connector, Liner Clamp	3
34	P-2402560	Stud 1 1/4“ x 6 1/4”	16
35	P-6300200	Nut, 1 1/4“ Hvy. Hex	16

GARDNER DENVER PZL-B 1600 HP (7500 PSI WORKING PRESSURE)				QTY PER PUMP
FLUID END MODULE & ACCESSORIES
ITEM #	OEM PART #	MISSION PART #
		FEMPZ101175CA	FLUID END MODULE COMPLETE ASSEMBLY	3
1	300PZL2039	FEMPZ101175	FLUID END MODULE-STUDDED (INCLUDES ITEMS 2, 18-23)	3
2	50B36	IDT800TRSN	NUT	168
3	303PZL316		SEAL, WEAR RING (WEAR PLATE)	3
4	300PZL483		GUIDE, VALVE (UPPER)	3
5	300PZL234		RING, WEAR (WEAR PLATE)	3
6	300PZL205	PZ1011LVGR75	RETAINER, VALVE GUIDE	3
7	300PZL316		SEAL, CYL. HEAD & VALVE COVER - RUBBER (SEE DATASHEET FOR ALT. MATERIALS)	6
8	301PZL147	PZ1011VC75	COVER-VALVE (UPPER)	3
9	15P27		BOLT, EYE	6
10	300PZL387	PZ1011FLG75	RING-THREADED	6
11	300PZL587	PZ1011CAP75	CAP, THREADED	6
12	25BE41	07923283	GASKET, SUCTION MANIFOLD	3
13	655EG10N		SCREW, SUCTION MANIFOLD	24
14	302PZL316		GASKET, DISCHARGE MANIFOLD	3
15	300PZL229		BUSHING	12
16	300PZL147	PZ1011CYHPLG75	COVER, CYLINDER HEAD (LOWER)	3
17	301PZL483		GUIDE, VALVE (LOWER)	3
18	303PZL110	PZ1011LCS75	STUD, LINER CLAMP	36
19	300PZL110	PZ1011PFS75WP	STUD, POWER FRAME (WEAR RING)	6
20	303PZL110	PZ1011PFS75	STUD, DISCHARGE MANIFOLD	6
21	301PZL110	PZ1011TRS75	STUD, THREADED RING	84
22	300PZL455	PZ1011LC75	CLAMP, LINER	3
23	300PZL234	PZ1011WP75	WEAR RING, (WEAR PLATE)	3

NATIONAL

12-P-160

Item	Premium Part Number	Description	Qty per Pump
1	P-1292240	Discharge Module Studded, (incl. Items 2-10)	3
2	P-1292241	Discharge Module, Only	3
3	P-6300220	Nut, 1 3/8“ Hvy. Hex	24
4	P-2408029	Stud, 1 3/8“ X 6 3/4”, Discharge to Frame	24
5	P-6300180	Nut, 1 1/8“ Hvy. Hex	18
6	P-2408028	Stud, 1 1/8“ X 6 3/8”, Discharge to Liner Bushing	18
7	P-6300281	Nut, 1 3/4“ Hvy. Hex	18
8	P-2408033	Stud, 1 3/4“ X 21 1/8”, Discharge to Suction	18
9	P-6300240	Nut, 1 1/2 Hvy. Hex	36
10	P-2408027	Stud, 1 1/2“ X 7 7/8” Top, Thread Ring	36
11	P-1292243	Suction Module Studded, (incl. Items 12-14)	3
12	P-1292244	Suction Module, Only	3
13	P-6300240	Nut, 1 1/2 Hvy. Hex	36
14	P-2408027	Stud, 1 1/2“ X 7 7/8” Top, Thread Ring	36
15	P-1293165	Bushing, Liner	3
16	P-1292174	Seal Retainer	6
17	P-1292172	Valve Cover	6
18	P-1292178	Screw, Wedge Adjusting	6
19	P-6300182	Nut, Wedge Adjusting	6
20	P-1292171	Washer, Wedge Adjusting Screw	6
21	P-1292176	Ring, Threaded	6
22	P-G-1292268	Wedge Assembly	6
23	P-1540127	Gasket, Valve Cover	6
24	P-1292140	Holder, Valve Guide Insert	6
25	P-1292141	Insert, Valve Guide	6
26	P-6511416	Pin Dowell	6
27	P-1292266	Plate, Wear	3
28	P-1292252	Connector, Discharge	2
29	P-7000-305-11	Screw Hex Head	16
30	P-7619050	Washer, Lock	16
31	P-1292253	Adapter, Discharge Connector	2
32	P-2410031-433	Packing, Rectangular	2
33	P-2410031-437	Packing, Rectangular	4
34	P-1292167	Clamp, Liner	3
35	P-7000491-10	Screw 7/8 X 4 1/2“ Hex Hd. w/ Lock Washer	6
36	P-6309140	Nut, 7/8“ Lock Type	6
37	P-1292169	Pin, Liner Clamp	3
38	P-1292168	Connector, Liner Clamp	3
39	P-2408015	Stud 1 1/2“ x 7 1/2”	16
40	P-6300240	Nut, 1 1/2“ Hvy. Hex	16

SOUTHWEST 8494-25A FLUID END FOR

EMSCO FC-2200

FLUID END TYPE	MODEL OF PUMP	SIZE OF PUMP
SOUTHWEST 7500 PSI	FC-2200	9” X 15”

ITEM	P/ N	DESCRIPTION	QTY. REQ’D
	8494-25A	FLUID END ASSEMBLY: (CONSISTS OF ITEMS:2,3,4,5,18,19,20,21,22,23,24,25,26,27,28,29,30,31,33,34,35,36,37,38,40)
1	6394GXX	LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX)	3
2	AJO524S	LINER & WEARPLATE SEAL (ALSO AVAILABLE IN URETHANE)	6
3	8494-54-1	LINER WEARPLATE BASE	3
4	8494-54-2	LINER WEARPLATE	3
5	4020-36	LINER WEARPLATE CAPSCREW	18
6	XX-BYY	PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)	3
7	568-225	PISTON SEAL	3
8	6293-33	PISTON ROD (WITH ELASTIC STOP NUT)	3
9	API-4ESN	PISTON ROD NUT	3
10	6293-3	SUB ROD	3
11	6293-4	PISTON ROD CONNECTING STUD	3
12	6293CW	ROD CLAMP	3
12A	1200H30	HOSE	3
12B	1200160	PIPE	3
12C	4019-92	ROD CLAMP CAPSCREW WITH HI-COLLAR LOCK WASHERS	6
13	6200G93	PONY ROD	3
14	SEE PAGE	VALVE COMPLETE	6
15	SEE PAGE	VALVE INSERT	6
16	SEE PAGE	VALVE SPRING	6
17	SEE PAGE	VALVE SEAT	6
	SWTM1700	HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG)	1
18	4476	VALVE COVER FLANGE	6
19	4597	SCREW GLAND	6
20	4609-25A	PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 21, 22, 23, & 24	6
21	P119	HP VALVE COVER PLUG NITRILE SEAL	6
22	4776R	VALVE GUIDE (COMPLETE WITH BUSHING #4700I)	6
23	4700I	VALVE GUIDE BUSHING	6
24	4016-98	VALVE GUIDE SCREW	12
25	4015-54	VALVE COVER STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT)	72
26	4020-42	POWER END STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT)	24
27	6494-25	LINER RETAINER FLANGE	3
28	4020-43	LINER RETAINER STUD (WITH SW PART# HHN1125-8 1 1/8-8 HEAVY HEX NUT)	48
29	6594-25	LINER RETAINER NUT	3
30	4020-6	SUCTION MODULE STUD (WITH SW PART# HHN2000-8 2-8 HEAVY HEX NUT)	18
31	4020-27	SUCTION MANIFOLD CAPSCREW	18
32		SUCTION MANIFOLD	1
33	568-442	SUCTION MANIFOLD O-RING	3
34	8494-26S	SUCTION MODULE	3
35	8494-27D	DISCHARGE MODULE	3
36	8488-5	DOWEL PIN	6
37	2988	MODULE SEAL	3
38	4020-44	DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1500-8 1 ½-8 HEAVY HEX NUT)	12
39		DISCHARGE MANIFOLD	1
40	568-349	DISCHARGE MANIFOLD O-RING	3

CONTINENTAL EMSCO FC-2200				QTY PER PUMP
FLUID END MODULE & ACCESSORIES
ITEM #	OEM PART #

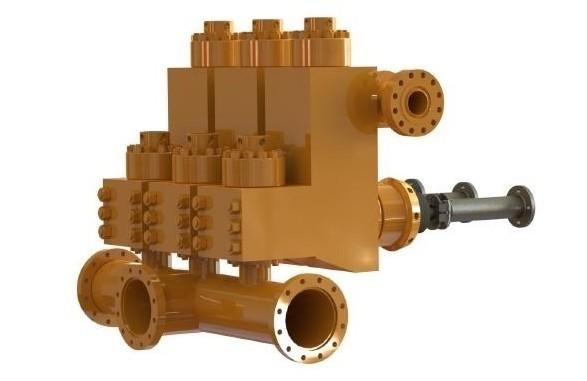

		EMSFEMFC2200CA	FLUID END MODULE COMPLETE ASSEMBLY
1	0-6323-0108-00	EMSFEMFC2200DIS	DISCHARGE MODULE-STUDDED
2	0-6323-0109-00	EMSFEMFC2200SUC	SUCTION MODULE-STUDDED
3	0-6323-0087-00		THREADED RETAINER
4	0-6323-0086-00		THREADED RING
5	0-6323-0083-00		VALVE POT COVER
6	0-6323-0103-00		VALVE GUIDE W/ BUSHING
7	0-6323-0126-00		HANDLER, VALVE POT
8	0-6323-0085-00		SUCTION MANIFOLD
9	0-6316-0105-95		FLANGE, SUCTION
10	0-6317-0074-95		FLANGE, BLIND
11	0-6323-0084-10		DISCHARGE MANIFOLD, 7500 PSI
12	0-6323-0097-00		WEAR PLATE
13
14	0-6323-0096-00		LINER THREAD RING
15	0-6323-0099-00		LINER LOCK
16
17	0-6323-0121-20		FEED PIPING ASSEMBLY
18	0-6323-0093-00		RETAINER, VALVE GUIDE
19	0-6323-0128-00		SEAL, F. E. MODULAR
20	0-6323-0127-00		WEAR PLATE LINER SEAL - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS)
21
22	0-7602-1600-52		O-RING (SUCTION MANIFOLD)
23	0-7602-1600-61		O-RING (SUCTION MANIFOLD TO F. E.)
24	0-7602-1600-30		O-RING (DISCHARGE MANIFOLD TO F. E.)
25	0-7501-0051-00		SCREW, RETAINER
26	0-7602-5280-72		WIRE, SOFT IRON .06 X 144.00
27
28	0-7601-0331-39		SCREW, HEX HD 1" - 8 X 5.00
29	0-7601-0630-20		NUT, HEX 1" - 8
30
31	0-7601-0333-30		SCREW, HEX HD 7/8-9 X 2.50 GR 5

SOUTHWEST 8490-2A FLUID END FOR

EMSCO FB1300/1600

FLUID END TYPE	MODEL OF PUMP	SIZE OF PUMP
SOUTHWEST 5000 PSI	FB1300/1600	7-1/2” X 12”

ITEM	P/ N	DESCRIPTION	QTY. REQ’D
	8490-2A	FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,33, 34,35,36,38,39)	3

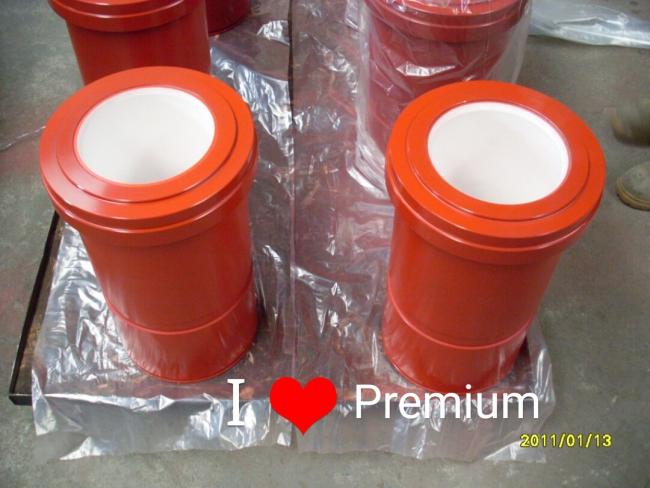

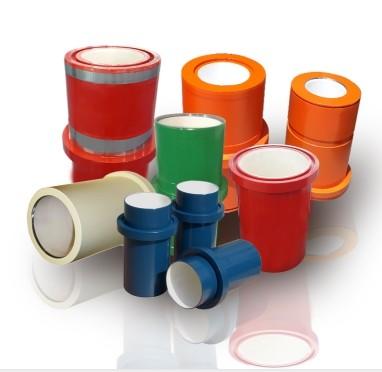

1	6390YXX	LINER (REFER TO GUIDE TO ORDERING CHART FOR TYPE (Y) AND FOR SIZE (XX)	3
2	AJO428S	LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX) (AJO428SU Also available in urethane)	3
3	8490-3	WEARPLATE	3
4	2988	WEARPLATE AND MODULE SEAL (2988U Also available in urethane)	6
5	XX-BYY	PISTON (REFER TO GUIDE TO ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)	3
5A	2932	PISTON BUSHING (FROM 1-5/8” TO 1-1/2” STRAIGHT BORE)	3
6	568-225	PISTON O-RING	3
7	6278-25	PISTON ROD (WITH ELASTIC STOP NUT)	3
8	API-4ESN	PISTON ROD NUT	3
9	1290-2	PISTON ROD CONNECTING STUD	3
10	6284-1	SUB ROD	3
11	6274CWY	ROD CLAMP (CONSIST OF 11A, 11B, 11C) (FOR CLAMP ONLY, USE 6274C)	3
11A	1200H30	HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS)	3
11B	1286-CWYFP14	PIPE (1/2” X 14” GALVANIZED AND THREADED ON ONE END)	3
11C	4020-29	BOLT (5/8” X 8” GRADE 8 BOLT WITH LOCK NUT AND WASHER)	6
12	1200G74	PONY ROD	3
13		VALVE	6
14		VALVE INSERT (IF REQUIRED)	6
15		VALVE SPRING	6
16		SEAT	6
	SWTM1700	HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION OF CATALOG FOR DETAILS.)
	4475-2A	SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY: (CONSIST OF ITEMS NO. 17-24)	6
17	4475	THREADED FLANGE	6
18	4575	SCREW GLAND	6
19	4675-2A	PLUG (COMPLETE WITH VALVE GUIDE; SCREWS; AND BUSHING)	6
20	P129	HP VALVE COVER PLUG SEAL (P129U Also available in urethane)	6
21	4775-2R	VALVE GUIDE (complete with bushing #4700I)	6
22	4700I	VALVE GUIDE BUSHING	6
23	4016-99	VALVE GUIDE SCREW	12
24	4015-2	VALVE COVER STUD (WITH SW PART# HHNHHN1250-7 1-1/4:-7” HEAVY HEX NUT)	72
25	4016-9	POWER END STUD (WITH SW PART# HHN1500-8 1-1/2-”8 HEAVY HEX NUT)	18
27	6490-3	LINER RETAINER FLANGE	3
28	8422-3	LINER RETAINER PILOT RING	3
29	6590-1	LINER RETAINER NUT	3
30	4016-97	SUCTION MODULE STUD (WITH SW PART# HHN1500-8 1-1/2”-8 HEAVY HEX NUT)	18
31	4018-19	SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER)	18
32	8590-6	SUCTION MANIFOLD (FRONT OR SIDE INLET)	1
33	568-442	SUCTION MANIFOLD SEAL	3
34	8490-2S	SUCTION MODULE (STUDDED ONLY)	3
35	8490-1D	DISCHARGE MODULE (STUDDED ONLY)	3
36	8488-5	DOWEL PIN	6
37	8390-50	DISCHARGE MANIFOLD	1
38	568-343	DISCHARGE MANIFOLD SEAL	3
39	4017-46	DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-8 1-1/4”-8 HEAVY HEX NUT)	12
40	ESN500	ELASTIC STOP NUT	12
41	LW875	LOCKWASHER 7/8	36
42	9070004	SINGLE LIP PONY ROD SEAL	3
43	9070005	DOUBLE LIP PONY ROD SEAL	3
44	9060012	SPLASH GUARD
	8590-6BFA	BLIND FLANGE IS AVAILABLE FOR CAPPING UNUSED FLANGES ON 8590-6 SUCTION MANIFOLD – (8590-6BFA INCLUDES 8590-6BF BLIND FLANGE AND 568-456 O-RING) SEE SEPARATE PG. FOR DETAILS
	6278-74	PISTON ROD PULLER FOR 6278-25 ROD & 1200G74 PONY
		THE FOLLOWING PARTS ARE USED WITH THE SOUTHWEST FB-1600 / FB-1300 HYDRAULIC LINER RETAINER
45	1388XX	LINER	3
46	2974XX	LINER SEAL	3
47	8490-20	LINER WEARPLATE / USE 2988 WEARPLATE GASKET SAME AS ORIGINAL	3
48	8488-7	SET SCREW	12
49	6588-22-2	LINER NUT	3

SOUTHWEST 8488-25A FLUID END FOR

OILWELL A-1700-PT/A-1400-PT

FLUID END TYPE	MODEL OF PUMP	SIZE OF PUMP
SOUTHWEST 7500 PSI	A-1700-PT / A-1400-PT	7-1/2” X 12”

ITEM	P/ N	DESCRIPTION	QTY. REQ’D
	8488-25A	FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3, 4, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 34, 35, & 36)
1	1388-XX	LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX)	3
2	2974-XX	LINER SEAL (ALSO AVAILABLE IN URETHANE)	3
3	8488-28	WEARPLATE	3
4	2988	WEARPLATE AND MODULE SEAL	9
5	XX-BYY	PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)	3
6	568-225	PISTON O-RING	3
7	1290HW25	PISTON ROD (WITH 1 ½-8 ELASTIC STOP NUT)	3
8	API-4ESN	PISTON ROD ELASTIC STOP NUT	3
9	1290W2	PISTON ROD CONNECTING STUD	3
10	1290HW1	SUB ROD	3
11	1290CW	ROD CLAMP (CONSIST OF 11A, 11B, 11C) (FOR CLAMP ONLY, USE 1290C)	3
11A	1200H30	HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS)	3
11B	1200120	PIPE (3/8” X 12” GALVANIZED AND THREADED ON ONE END)	3
11C	4018-94	ROD CLAMP BOLT (5/8-11 GRADE 8 BOLT WITH LOCK NUT AND WASHER)	6
12	1200G90	PONY ROD	3
13	SEE PAGE	VALVE	6
14	SEE PAGE	VALVE INSERT (IF REQUIRED)	6
15	SEE PAGE	VALVE SPRING	6
16	SEE PAGE	VALVE SEAT	6
	SWTM1700	HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG)	1
17	4488-25	THREADED FLANGE	6
18	4588-25	SCREW GLAND	6
19	4690-25A	PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 21, 22, & 23	6
20	P115	HP VALVE COVER PLUG SEAL (ALSO AVAILABLE IN URETHANE PART# P115U)	6
21	4788R-25	VALVE GUIDE (COMPLETE WITH BUSHING #4700I)	6
22	4700I	VALVE GUIDE BUSHING (ALSO AVAILABLE IN URETHANE PART # 4700IU)	6
23	4018-18	VALVE GUIDE SCREW	12
24	4015-2	VALVE COVER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT)	72
25	4020-5	POWER END STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT)	12
26	6588-1	LINER RETAINER NUT	3
27	8488-7	LINER RETAINER CAPSCREW	9
28	6488-25	LINER RETAINER FLANGE	3
29	4016-80	LINER RETAINER SOCKET HEAD CAP SCREW	24
30	4020-4	SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT)	18
31	4018-70	SUCTION MANIFOLD CAP SCREW	24
32	8588-50A	SUCTION MANIFOLD	1
33	80102003	SUCTION MANIFOLD SEAL	3
34	8488-26	SUCTION MODULE	3
35	8488-27	DISCHARGE MODULE	3
36	8488-5	DOWEL PIN	6
37	8388-25A	DISCHARGE MANIFOLD	1
38	4019-60	DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT)	18
39	568-445	“O” RING – WEAR PLATE O.D. RETAINER	3
40	2932	PISTON BUSHING (1 5/8 TO 1 ½ DIA.)	3

SOUTHWEST 7500 P.S.I.

NATIONAL 12P-160

7-1/2” X 12”

ITEM	P/N	DESCRIPTION	QTY. REQ’D
	8476-25A	FLUID END ASSEMBLY (CONSISTS OF ITEMS 3,4,16,17,18,19,20,21,22,23,24,25,26,27,28,29,31,32,33,34,36,37,38)
1	1376YXX	LINER (REFER TO- GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX)	3
2	2930-XX	LINER SEAL (REFER TO- GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX))	3
3	8476-3	WEARPLATE	3
4	2988	WEARPLATE, AND DISCHARGE MANIFOLD SEAL	6
5	XX-BYY	PISTON (REFER TO- GUIDE FOR ORDERING CHART FOR SIZE (XX) AND TYPE (YY))	3
6	568-225	PISTON O-RING	3
7	1286-32	PISTON ROD (WITH ELASTIC STOP NUT)	3
8	API-4ESN	PISTON ROD ELASTIC STOP NUT	3
9	1286-1	SUB ROD	3
10	1286CWY	ROD CLAMP (CONSIST OF 10A, 10B, 10C) (FOR CLAMP ONLY, USE 1286C)	6
10A	1200H30	HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS)	3
10B	1286CWYFP14	PIPE (3/8” X 14” GALVANIZED AND THREADED ON ONE END)	3
10C	4020-29	BOLT (7/8 - 9 GRADE 8 BOLT WITH LOCK NUT AND WASHER)	12
11	1200G86	PONY ROD	3
12	SEE PAGE	VALVE	6
13	SEE PAGE	VALVE INSERT (IF REQUIRED)	6
14	SEE PAGE	VALVE SPRING	6
15	SEE PAGE	VALVE SEAT	6
	SWTM1700	HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS)	1
16	4488-25	THREADED FLANGE	6
17	4588-25	SCREW GLAND	6
18	4690-25A	PLUG (COMPLETE WITH VALVE GUIDE, BUSHING, AND SCREWS; INCLUDES ITEMS 20, 21, & 22)	6
19	P115	HP VALVE COVER PLUG NITRILE SEAL	6
20	4788-25R	VALVE GUIDE (COMPLETE WITH BUSHING #4700I)	6
21	4700I	VALVE GUIDE BUSHING	6
22	4018-88	VALVE GUIDE SCREW	12
23	4015-2	VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4-7 HEAVY HEX NUT)	72
24	4015-95	POWER END STUD (WITH SW PART# HHN1375-6 1 3/8-6 HEAVY HEX NUT)	30
25	6476	LINER RETAINER FLANGE	3
26	4017-65	LINER RETAINER FERRY HEAD CAP SCREW	18
27	6576	LINER RETAINER NUT	3
28	4019-54	SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4-8 HEAVY HEX NUT)	18
29	4018-19	SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER)	24
30	8576-50	SUCTION MANIFOLD (FRONT OR SIDE INLET)	1
31	AJO419R	SUCTION MANIFOLD GASKET	3
32	8476-26S	SUCTION MODULE	3
33	8476-27D	DISCHARGE MODULE	3
34	8488-5	DOWEL PIN	6
35	8376-25MOD	DISCHARGE MANIFOLD	1
36	4019-60	DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4-7 HEAVY HEX NUT)	18
37	LW500	LOCKWASHER	12
38	LW875	LOCKWASHER	24
39	9070012	PONY ROD SEAL	12
40	80491292	SPLASH GUARD	3
23	4015-2	VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4-7 HEAVY HEX NUT)	72
24	4015-95	POWER END STUD (WITH SW PART# HHN1375-6 1 3/8-6 HEAVY HEX NUT)	30
25	6476	LINER RETAINER FLANGE	3
26	4017-65	LINER RETAINER FERRY HEAD CAP SCREW	18
27	6576	LINER RETAINER NUT	3
28	4019-54	SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4-8 HEAVY HEX NUT)	18

SOUTHWEST 7500 P.S.I.

BOMCO F-1600

7 ½” X 12”

ITEM NO.	PART NO.	DESCRIPTION	QTY. REQ’D
	8404-25A	FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,34,35,36,38,39,41,42)
1	1376YXX	LINER REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR TYPE (G); (Y); AND FOR BORE SIZE (XX)	3
2	2930-XX	LINER SEAL (ALSO AVAILABLE IN URETHANE PART# 2930-XXU)	3
3	8490-28	LINER WEARPLATE (WITH 568-443 O-RING)	3
4	2988	WEARPLATE AND MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U)	6
5	XX-BYY	PISTON REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR SIZE (XX) AND FOR TYPE (YY)	3
6	568-225	PISTON SEAL	3
7	6278-25	PISTON ROD (WITH ELASTIC STOP NUT)	3
8	API-4ESN	PISTON ROD NUT	3
9	1290-2	PISTON ROD CONNECTING STUD	3
10	6284-1	SUB ROD	3
11	6274CWY	ROD CLAMP (WITH WATER JACKET)	3
11A	1200H30	HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS)	3
11B	1286CWYFP	ROD CLAMP WATER SPRAY MANIFOLD WITH PIPE	3
11C	4020-29	BOLT (7/8-9 GRADE 8 BOLT WITH LOCK NUT AND WASHER)	6
12	1200G74	PONY ROD	3
13	SEE PAGE	VALVE	6
14	SEE PAGE	VALVE INSERT	6
15	SEE PAGE	VALVE SPRING	6
16	SEE PAGE	VALVE SEAT	6
	SWTM1700	HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG)	1
17	4488-25	VALVE COVER FLANGE	6
18	4588-25	SCREW GLAND	6
19	4690-25A	PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, 22, &23	6
20	P115	HP VALVE COVER PLUG NITRILE SEAL (ALSO AVAILABLE IN URETHANE PART # P115U)	6
21	4788-25R	VALVE GUIDE (COMPLETE WITH BUSHING #4700I)	6
22	4700I	VALVE GUIDE INSERT (ALSO AVAILABLE IN URETHANE PART # 4700IU)	6
23	4018-18	VALVE GUIDE SCREW	12
24	4015-2	VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT)	72

FLUID END TYPE	MODEL OF PUMP	SIZE OF PUMP
SOUTHWEST 7500 P.S.I.	BOMCO F-1600	7 ½” X 12”

ITEM NO.	PART NO.	DESCRIPTION	QTY. REQ’D
25	4017-33	POWER END STUD (WITH SW PART# HHN1500-8 1 1/2"-8 HEAVY HEX NUT)	30
26	568-443	WEARPLATE 'O' RING	3
27	6490-25	LINER RETAINER FLANGE	3
28	4019-51	LINER RETAINER CAPSCREW	36

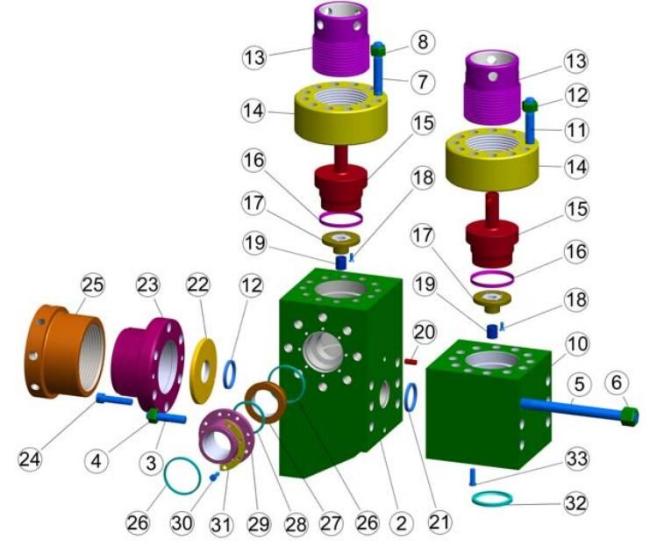

29	6590-25	LINER RETAINER NUT	3
30	4019-61	SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4"-8 HEAVY HEX NUT)	18
31	4018-19	SUCTION MANIFOLD CAPSCREW	18
32	8590-6	SUCTION MANIFOLD	1
33	568-442	SUCTION MANIFOLD 'O' RING	3
34	8404-26	SUCTION MODULE	3
35	8404-27	DISCHARGE MODULE	3
36	8488-5	DOWEL PIN	6
37	8376-25MOD	DISCHARGE MANIFOLD	1
38	4019-60	DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT)	18
39	2988	DISCHARGE MANIFOLD SEAL	3
40	6490-25P	LINER RETAINER PULLER	1
41	LW875	LOCKWASHER 7/8	18
42	LW500	LOCKWASHER ½	12

All our fluid end parts are manufactured to API 7K quality standards.

Parts are available for these popular pump models:

BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600

Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,

National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,

Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT

Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200

Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32

WEATHERFORD/Ellis Williams: E-447, E-2200

Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800

Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000

And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.

1,Plunger Size 3.38” - 4.00” Valve Part No. P107185 Seat Part No. P107802
Insert Part No. P107186 Spring
2,Plunger Size 4.50” Valve Part No. P107181 Seat Part No. P107180
Insert Part No. P107182 Spring
3,Plunger Size 5.00” - 6.00” Valve Part No. P107188 Seat Part No. P107187
Insert Part No. P107189 Spring4P102382
SPM2000
1,Plunger Size 3.75" Plunge Part No 3P103887
2,Plunger Size 4.00" Plunge Part No 3P100339
3,Plunger Size 4.50" Plunge Part No 3P100654
4,Plunger Size" 5.00" Plunge Part No 3P100233
5,Plunger Size" 5.50 Plunge Part No 3P107060
6,Plunger Size" 5.75" Plunge Part No 3P107061
7,Plunger Size 6.00 Plunge Part No 3P107062
SPM
TWS 250 Plunger Size 1.75"-3" 3.25"-4"
TWS 400 Plunger Size 2 .50"-3" 3 .50"-4 .50”
TWS 500LW-600 Plunger Size 2 .75" 3"-4 .75"
TWS 600S Plunger Size 2 .50"-3" 3.50"-4 .50"
TWS 900 Plunger Size 3.50"-4"
TWS 1250LW Plunger Size 4"
OPI880 Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0”
TWS1000LW,TWS1300
Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0” 6.5 “ 6.75”
TWS1600 Plunger Size 3.5” 3.75” 4.0” 4.50” 5.0” 5.5” 5.75 “6.0”
TWS1800 Plunger Size 3.5” 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0”
TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
5.50” 5.75” 6.0”
TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5

Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036

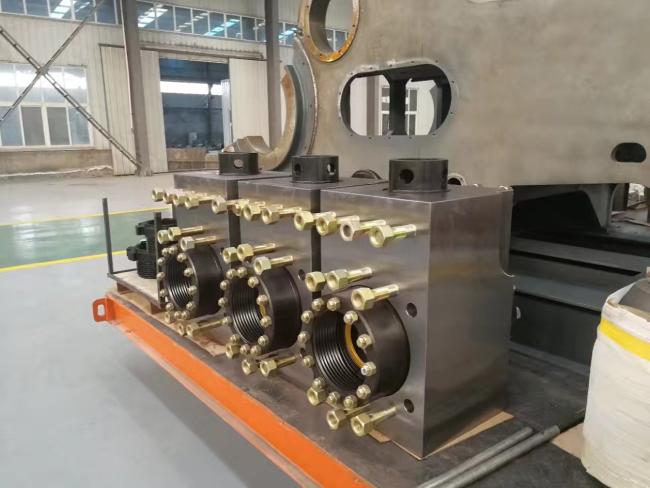

Fluid End Modules
National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®
Pulsation Dampener
Hydril Type "K" Pulsation Dampener
Popular Mud Pump Spare Parts

Mud Pump Manufactures and Models include:

Brewster Mud Pumps

B-550 | B-750 | B-1000 | 1100T | B-1300

Continental Emsco Mud Pumps

Continental Emsco Mud Pumps

Continental Emsco Mud Pumps

PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL

Ellis Williams (Luko) Mud Pumps

WW-440 | 14W-400 | 15W-600 | 9W-1000

Gaso Mud Pump

1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652

Gardner Denver Mud Pumps

FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL

Ideco Mud Pumps

MM-200 | MM-300 | MM-500 | MM-500F | MM-550

Ideco Mud Pumps

MM-550F | MM-700 | MM-700F | T-500

Ideco Mud Pumps

T-800 | T-1000 | T-1300 | T-1600

National Mud Pumps

C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000

National Mud Pumps

K-280 | K-380 | K-500 | K-500A | K-700A

National Mud Pumps

7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160

Oilwell Mud Pumps

6P-HD | 610-P | 212-P | 214-P | 218-P

Oilwell Mud Pumps

350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT

Oilwell Mud Pumps

A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT

OPI Mud Pumps

350-D | 700-HDL | 1000-HDL

Wheatley Mud Pumps

1036 | 6070 | 7024 | 7036

Wilson Mud Pumps

600 | 900

Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300

Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600

Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652

Gardner Denver ® Mud Pumps

PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL

Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225

Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T

Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550

Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500

Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600

National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400

National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A

National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160

Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT

Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT

Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B

OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL

Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036

Fluid End Modules

National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®

Pulsation Dampener

Hydril Type "K" Pulsation Dampener

Mud Pump PZ/7/8/9, Drilling Rig Mud Pump Mud Pump Model List

NEWS

CONTACT US

Contact:Mr Liu

Mobile:15869109368

Tel:86-571-89967020

E-mail:info@dawopu.com

Address:No151 ,ZiDingXiang Rd, Hangzhou. Zhejiang Province, China

Company news

LEWCO-W2215 Mud Pump, WH1612 MUD PUMP, WH1312 MUD PUMP, WH-2214 MUD PUMP FLUID END MODULE, LINER, PISTON

NATIONAL

12-P- 160

NATIONAL

7-P- 50

NATIONAL

12-P-160

Related

MENU

NEWS

CONTACT US
