H157014 John Deere Reducing shaft

Shaft with gear wheel for combine John Deere (2254, 2264, 6650, 6750, 6850, 6950, 9400, 9500, 9600, 9610, 9780, 9965, 9970, 9976, CTS II). T - 11, slots - 18, length - 220 mm..

Reference: #H157014.

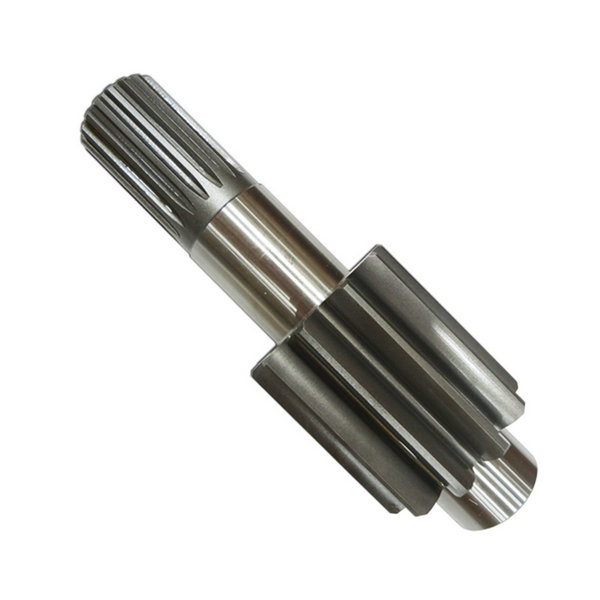

Reducing shaft H157014 John Deere

Usage

Spare part of the combine harvester John Deere.

Appointment

Transmission of the rotary motion on gearbox.

Used to replace worn or damaged parts during repair and restoration work.

Properties

Steel detail of a complex spatial shape in the form of a shaft, in which teeth of the gear are cut, and the slots and the shaft groove are made for fastening the gears of the gear unit.

The part is made of special steel and is heat-treated, providing maximum durability and wear resistance.

Parameters

Weight , W kg 3.27

Outside diameter , D mm 73.5

Number of teeth , Z 11

Number of splines , F 18

Length , L mm 220

Thread , M М12

Outside diameter , D1 mm 40.5

Diameter of shaft , Ds mm 41.5

Outer diameter, D2, mm , D2 mm 34.5

Lenght , L1 mm 82

The parameters may differ from the actual ones.

Sales units

Sales unit 1 piece

Quantity in the package 1 piece

Usage of Reducing shaft H157014 John Deere

Combine harvester John Deere:

2254225622582264226694109410 Maximizer950095109510 Maximizer96009610 Maximizer9780CTS II

Forage harvester John Deere:

6650675068506950

Tractor John Deere:

9400
