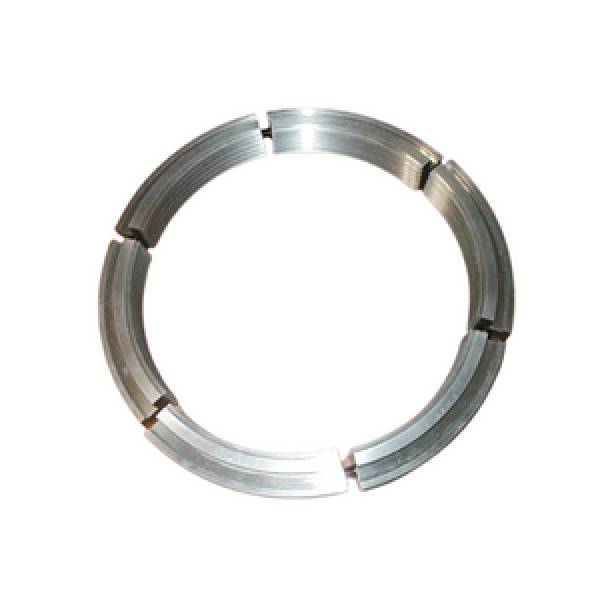

Retractable Turbine Packing Ring
Retractable Turbine Packing Rings are segmented sealing assemblies designed for compatible steam and gas turbines. The retractable design allows the sealing segments to maintain increased clearance during startup and shutdown and move toward the rotor under suitable operating conditions to reduce leakage. Replacement assemblies can be supplied subject to verification of turbine model, dimensions, materials, and original equipment specifications.
| Application | - Steam turbine shaft sealing - Steam turbine interstage sealing - Leakage control between rotating and stationary components - Turbine maintenance and overhaul - Replacement of worn or damaged packing segments - Turbine efficiency and sealing-system maintenance - Selected gas turbine sealing applications, subject to design verification |
|---|
Compatible Models
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Retractable Turbine Packing Ring |
| Product Type | Retractable Segmented Turbine Seal |
| Equipment | Compatible Steam Turbines; Selected Gas Turbines Subject to Verification |
| Design | Segmented, radially retractable packing ring |
| Sealing Type | Labyrinth or other specified sealing profile |
| Operating Mechanism | Spring- and/or pressure-actuated, depending on design |
| Material | Turbine-grade material; exact grade to be confirmed |
| Operating Temperature | According to turbine location and OEM specification |
| Rotor Clearance | Design-specific; confirm original drawing |
| Segment Geometry | Model- and drawing-dependent |
| Holder Interface | Must match the original diaphragm or packing holder |
| Spring Arrangement | Design-specific |
| Manufacturing Process | Precision machining and profile finishing as specified |
| Inspection | Dimensional, material, and profile inspection as agreed |
| Compatibility | Requires turbine model and OEM part-number verification |
| Application | Turbine shaft and interstage sealing, where specified |
Technical note: These are general product characteristics, not confirmed specifications for a particular turbine. Do not publish a specific alloy grade, operating temperature, clearance, or guaranteed leakage reduction without supporting technical documentation.
| Application | - Steam turbine shaft sealing - Steam turbine interstage sealing - Leakage control between rotating and stationary components - Turbine maintenance and overhaul - Replacement of worn or damaged packing segments - Turbine efficiency and sealing-system maintenance - Selected gas turbine sealing applications, subject to design verification |
|---|
Compatible Models
This Retractable Turbine Packing Ring is designed as a direct replacement for the following machine models and series:
Not sure if it fits your machine? Send us your equipment model or original part number — ask an engineer →
Description
Retractable Turbine Packing Ring
Product Overview
The Retractable Turbine Packing Ring is a specialized sealing component used in compatible steam turbines and selected gas turbine applications. It helps control leakage between the rotating shaft and stationary turbine components, supporting sealing performance and overall turbine efficiency.
Unlike conventional fixed-clearance packing, a retractable packing ring uses segmented sealing elements and a supporting mechanism that allows radial movement under specified operating conditions. During startup and shutdown, the segments can maintain a larger clearance from the rotor. When operating pressure and other design conditions are sufficient, the segments move toward the rotor to establish a smaller operating clearance.
Key Features
Retractable segmented design: Allows controlled radial movement of the packing segments.
Leakage control: Labyrinth-style sealing teeth create a series of restrictions that reduce fluid leakage.
Rotor protection: Increased clearance during applicable operating conditions helps reduce the risk of rubbing.
Spring and pressure-actuated operation: Movement depends on the specific spring arrangement, pressure distribution, and holder design.
Precision-machined profiles: Segment geometry and holder interfaces are manufactured to the approved drawing.
Replacement supply: Assemblies and individual segments can be evaluated for compatible turbine models.
Materials and Manufacturing
Material selection depends on the turbine location, operating temperature, working fluid, rotor speed, and original equipment specification. Depending on the design, components may use suitable heat-resistant alloys or other specified turbine-grade materials.
Manufacturing may include precision machining, profile grinding, dimensional inspection, and verification of segment-to-holder interfaces. Material grades, heat treatment, coatings, and inspection requirements must be confirmed for the actual part.
Typical Applications
Retractable turbine packing rings are used in compatible steam turbine sealing locations, including selected shaft sealing and interstage sealing arrangements. Application in gas turbines must be confirmed against the specific machine design because hot-gas-path sealing components may have different construction and material requirements.
Replacement and Ordering Information
To identify the correct replacement, please provide the turbine manufacturer, model, serial number where available, OEM part number, installation location, segment drawing, and material requirements.
The segment profile, tooth geometry, radial clearance, holder interface, and spring arrangement are critical to proper operation. Replacement compatibility should be verified against the original technical drawings and operating specifications before ordering.
