John Deere L102682 Tractor PTO Output Shaft
Product Overview

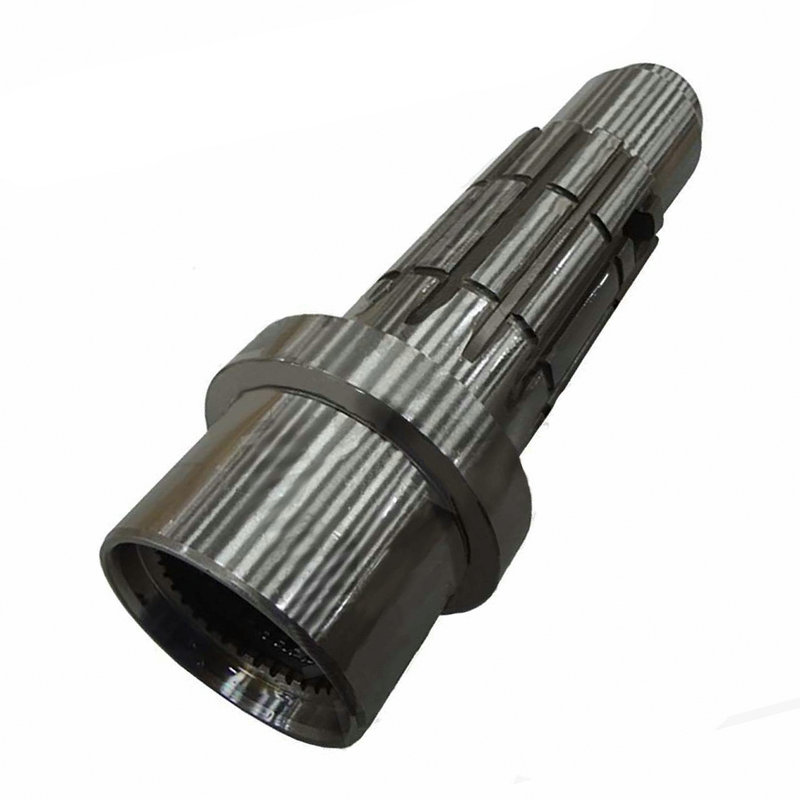

John Deere L102682 Tractor PTO Output Shaft
Premium PTO Output Shaft for John Deere 6000 & 6010 Series Tractors
The John Deere L102682 PTO Output Shaft is a critical transmission component used in the rear Power Take-Off (PTO) system of John Deere agricultural tractors. Designed to transmit engine power efficiently from the transmission to PTO-driven implements, this shaft ensures reliable operation of mowers, balers, rotary tillers, sprayers, and other agricultural equipment.
At Dawopu, we manufacture precision PTO shafts and agricultural transmission components using advanced CNC machining, alloy steel forging, spline cutting, and heat-treatment technologies. Our L102682 PTO Output Shaft is engineered for exceptional durability, precise fitment, and dependable long-term performance.
Product Overview
The L102682 PTO Output Shaft is installed within the rear PTO assembly and serves as the final output component responsible for transferring rotational power to attached implements.
Its primary functions include:
- Delivering PTO power to agricultural implements
- Supporting smooth torque transmission
- Maintaining drivetrain efficiency
- Reducing transmission vibration
- Improving equipment productivity
- Extending PTO system service life
A high-quality PTO output shaft is essential for maintaining consistent power delivery and reliable field performance.
Why Choose Dawopu?
Dawopu specializes in manufacturing agricultural machinery transmission components, PTO shafts, gearbox shafts, gears, and precision industrial products.
Our advantages include:
- OEM & ODM manufacturing
- Advanced CNC machining capability
- Strict quality management system
- Competitive factory pricing
- Fast worldwide delivery
- Professional engineering support
- Extensive export experience
Technical Specifications
Technical Specifications
| Item | Specification |
|---|---|
| OEM Number | L102682 |
| Product Type | PTO Output Shaft |
| Length | Approx. 267 mm (10-17/32") |
| Weight | Approx. 4.38 kg |
| Application | Rear PTO System |
| Installation Position | PTO Transmission Assembly |
According to John Deere official parts information, the shaft weight is approximately 4.382 kg and overall length is approximately 302 mm including assembly dimensions. Aftermarket PTO shaft references list an effective shaft length of approximately 267 mm.
Material Specifications
| Component | Material |
| Shaft Body | 42CrMo Alloy Steel |
| Alternative Material | 40Cr Forged Steel |
| Heat Treatment | Quenched & Tempered |
| Surface Finish | Precision Ground |
Mechanical Properties
- Tensile Strength: ≥ 900 MPa
- Yield Strength: ≥ 750 MPa
- Surface Hardness: HRC 28–38
- Excellent fatigue resistance
- High torsional strength
- Superior wear resistance
Suitable Machines
The John Deere L102682 PTO Output Shaft is commonly used in the following tractor models:
John Deere 6000 Series
- John Deere 6100
- John Deere 6200
- John Deere 6200L
- John Deere 6300
- John Deere 6300L
- John Deere 6400
- John Deere 6400L
- John Deere 6500
- John Deere 6500L
- John Deere 6600
John Deere 6010 Series
- John Deere 6110
- John Deere 6110L
- John Deere 6210
- John Deere 6210L
- John Deere 6310
- John Deere 6310L
- John Deere 6310S
- John Deere 6410
- John Deere 6410L
- John Deere 6410S
- John Deere 6510
- John Deere 6510L
- John Deere 6510S
- John Deere 6610
John Deere 6005 Series
- John Deere 6205
- John Deere 6405
- John Deere 6605
Additional compatibility may include selected 6215, 6325, 6415, 6425, 6515, 6525, 6615 and 6715 models depending on PTO configuration. Always verify OEM number L102682 before ordering.
Why Choose Dawopu Group
OEM Quality
Manufactured to meet OEM specifications
Material Quality
High-grade materials for durability
Fast Delivery
Reliable shipping to global destinations
Certified Quality
ISO 9001:2025
Expert Support
Technical support available
Global Experience
Serving customers worldwide
