Horsch 01501904 bushing suitable

Part No. 01501904

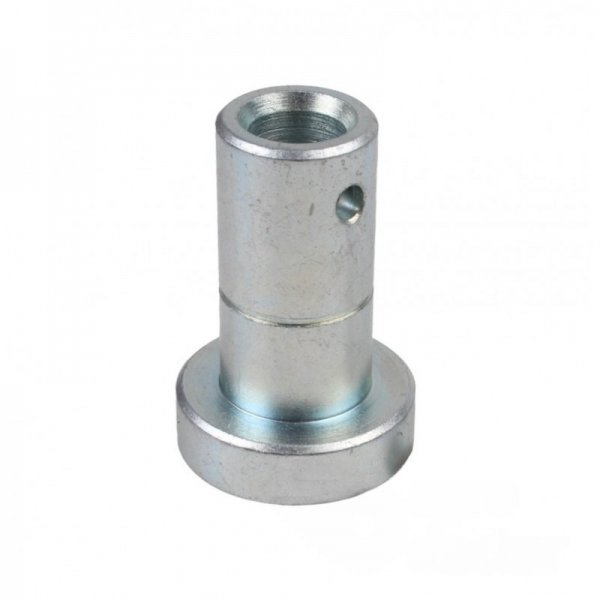

HORSCH 01501904 Guide Bushing is a precision guide sleeve used in HORSCH agricultural machinery. It provides accurate shaft guidance, reduces friction and wear, and ensures smooth movement of rotating or sliding components.

Material Hardened Steel
Dimensions Inner Diameter (d) 15 mm Outer Diameter (D) 40 mm Secondary Diameter (D1) 25 mm Length (L) 60 mm Pin
Weight 0.206
Application Seed drill guide systems Cultivator pivot assemblies Harrow linkage mechanisms Fertilizer spreaders Shaft support systems Agricultural machinery maintenance OEM replacement and overhaul (MRO)

Compatible Models

Suitable for selected HORSCH machines using OEM Part No. 01501904 including: HORSCH Avatar HORSCH Express HORSCH Focus HORSCH Maestro HORSCH MiniDrill HORSCH Pronto +9 more

Technical Specifications

ParameterSpecification
Product NameGuide Bushing
OEM Part Number01501904
Component TypeGuide Bushing / Guide Sleeve
MaterialHardened Steel
Weight0.206 kg
Inner Diameter (d)15 mm
Outer Diameter (D)40 mm
Secondary Diameter (D1)25 mm
Length (L)60 mm
Pin Hole Diameter (d0)5.5 mm
Manufacturing ProcessPrecision Machining
Surface FinishAnti-corrosion Oil / OEM Finish
ConditionNew OEM Replacement

The dimensions and weight above are published by aftermarket suppliers for OEM part 01501904.

Part Number01501904
MaterialHardened Steel
Weight0.206
DimensionsInner Diameter (d) 15 mm Outer Diameter (D) 40 mm Secondary Diameter (D1) 25 mm Length (L) 60 mm Pin
ApplicationSeed drill guide systems Cultivator pivot assemblies Harrow linkage mechanisms Fertilizer spreaders Shaft support systems Agricultural machinery maintenance OEM replacement and overhaul (MRO)

Compatible Models

This Horsch 01501904 bushing suitable is designed as a direct replacement for the following machine models and series:

Suitable for selected HORSCH machines using OEM Part No. 01501904 including: HORSCH Avatar HORSCH Express HORSCH Focus HORSCH Maestro HORSCH MiniDrill HORSCH Pronto HORSCH Serto HORSCH Sprinter HORSCH Joker HORSCH DuoDrill HORSCH Tiger HORSCH Partner Fertilizer Spreader Compatibility should always be confirmed using the machine model serial number or the official HORSCH parts catalogue.

Not sure if it fits your machine? Send us your equipment model or original part number — ask an engineer →

Description

The HORSCH 01501904 Guide Bushing is an OEM replacement guide sleeve designed for use in various HORSCH seed drills, cultivators, harrows, and fertilizer spreaders. Installed at pivot or shaft locations, it provides precise alignment for moving parts while minimizing wear and vibration.

Manufactured from high-strength steel, the bushing features excellent mechanical strength, wear resistance, and dimensional stability. It is precision-machined to OEM specifications and includes a cross-hole for pin installation, making it suitable for heavy-duty agricultural applications.

Product Features

  • OEM-quality replacement
  • Precision-machined steel construction
  • Excellent wear resistance
  • High load-bearing capacity
  • Accurate shaft guidance
  • Reduces friction and vibration
  • Easy installation
  • Long service life
  • Suitable for heavy-duty agricultural machinery applications
