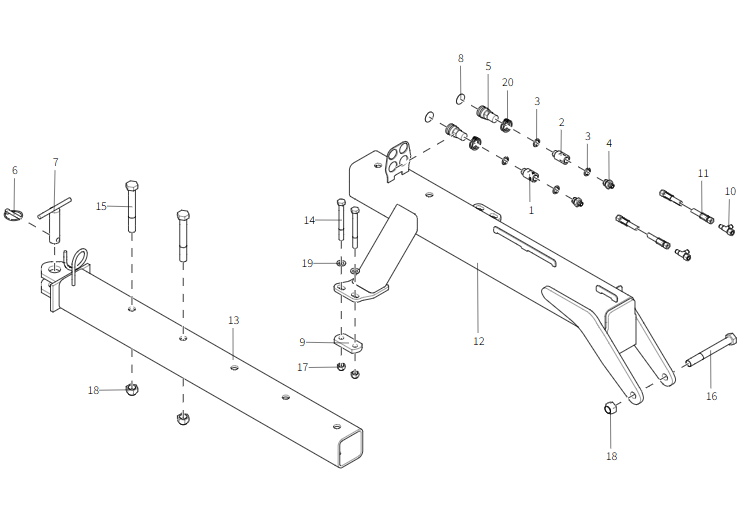

| Id | Number | Quantity | Name | Specifications | |
|---|---|---|---|---|---|
| 1 | 203027 | 1 | Labelling | Red, (+) | |
| 2 | 203028 | 1 | Labelling | Röd / Red - | |
| 3 | 401774 | 4 | Rubber steel washer | DI: 1/2" | |
| 4 | 401782 | 2 | Adapter | DO: 1/2" DO: 1/4" | |
| 5 | 402005 | 2 | Quick-release coupling | DI:1/2" Female | |
| 6 | 406311 | 1 | Pin | Ø10x60 | |
| 7 | 415064 | 1 | Pin | ||
| 8 | 423751 | 2 | Cover | ||
| 9 | 424985 | 2 | Plate | ||
| 10 | 411916 | 2 | Adapter | DI: 1/4" DO: 1/4" DO: 1/4" | |
| 11 | 441970 | 2 | Hydraulic hose | DI :1/4" L :2000 | |
| 12 | 477209 | 1 | Draw bar | ||
| 13 | 477210 | 1 | Square tube | ||
| 14 | 50001615021 | 4 | Hexagon head bolt | M16x150 8.8 | |
| 15 | 50002418021 | 2 | Hexagon head bolt | M24x180 8.8 | |
| 16 | 50002420021 | 1 | Hexagon head bolt | M24x200 8.8 | |
| 17 | 51021600021 | 4 | Lock nut | M16 8 | |
| 18 | 51022400021 | 3 | Lock nut | M24 8 | |
| 19 | 52001600041 | 4 | Washer | 17x30x3 | |
| 20 | 54003800094 | 4 | Circlip |
