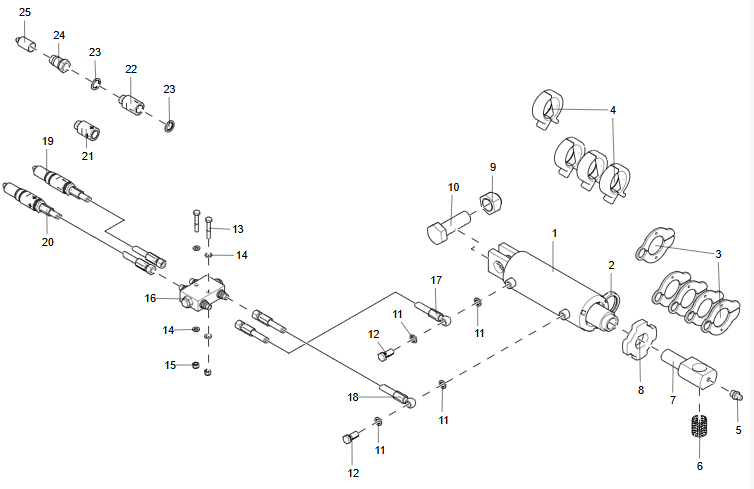

| Id | Number | Quantity | Name | Specifications | |
|---|---|---|---|---|---|
| 1 | 480463 | 1 | Hydraulic cylinder | D:80/50 L:321/150 | |
| 2 | 480467 | 1 | Sealing kit | ||
| 3 | 487397 | 5 | Spacer | ||
| 4 | 449066 | 4 | Spacer | T:25.4 | |
| 5 | 407661 | 1 | Grease nipple | M8 ST | |
| 6 | 465317 | 1 | Slide bearing | ||
| 7 | 468587 | 1 | Piston rod head | ||
| 8 | 468588 | 1 | Plate | ||
| 9 | 51023000011 | 1 | Lock nut | M30 10 | |
| 10 | 465323 | 1 | Screw | M30x90 | |
| 11 | 402202 | 4 | Rubber steel washer | DI: 1/4" | |
| 12 | 406751 | 2 | Screw | DO: 1/4" | |
| 13 | 50000805021 | 2 | Hexagon head bolt | M8x50 8.8 | |
| 14 | 52000800041 | 4 | Washer | 8.4x16x1.6 | |
| 15 | 51010800021 | 2 | Lock nut | M8 8 | |
| 16 | 428236 | 1 | Hydraulic block | ||
| 17 | 447541 | 1 | Hydraulic hose | DI :1/4" L :900 | |
| 18 | 447542 | 1 | Hydraulic hose | DI :1/4" L :1100 | |
| 19 | 231570 | 1 | Hydraulic hose | Blue, DI :1/4" L :1340 | |
| 20 | 231569 | 1 | Hydraulic hose | Blue, DI :1/4" L :1340 | |
| 21 | 203025 | 1 | Labelling | Blue, (+) | |
| 22 | 203026 | 1 | Labelling | Blue, (-) | |
| 23 | 401774 | 4 | Rubber steel washer | DI: 1/2" | |
| 24 | 401776 | 2 | Quick-release coupling | DI:1/2" Male | |
| 25 | 427914 | 2 | Guard |
